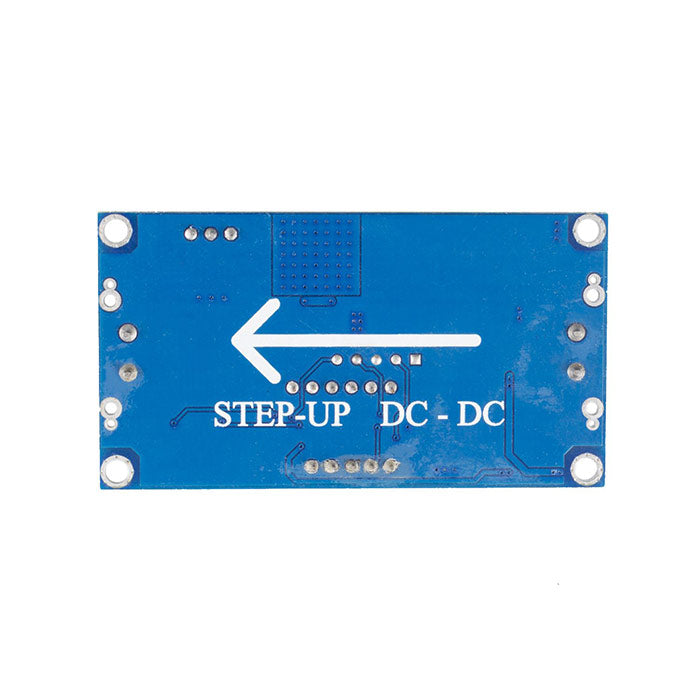

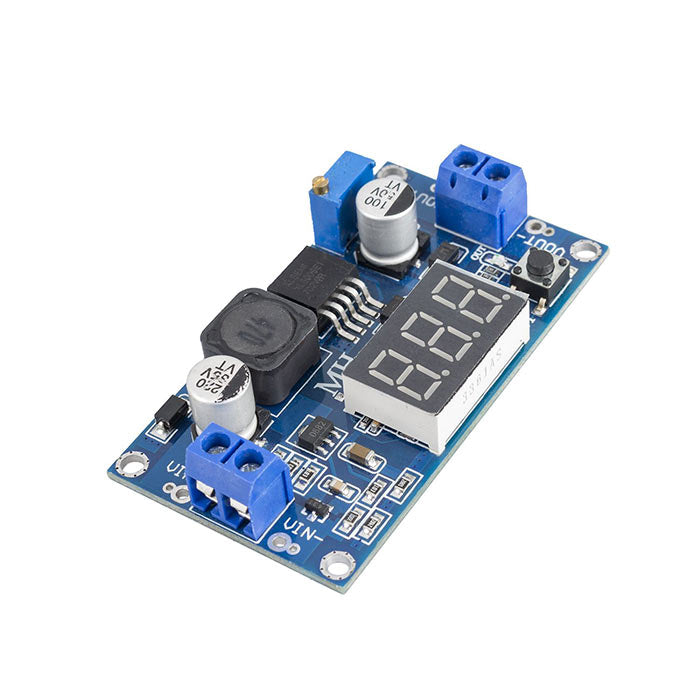

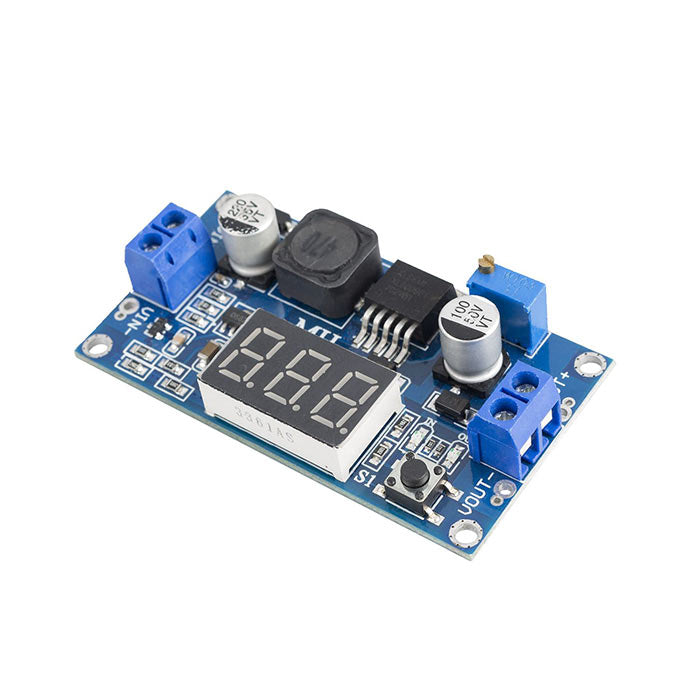

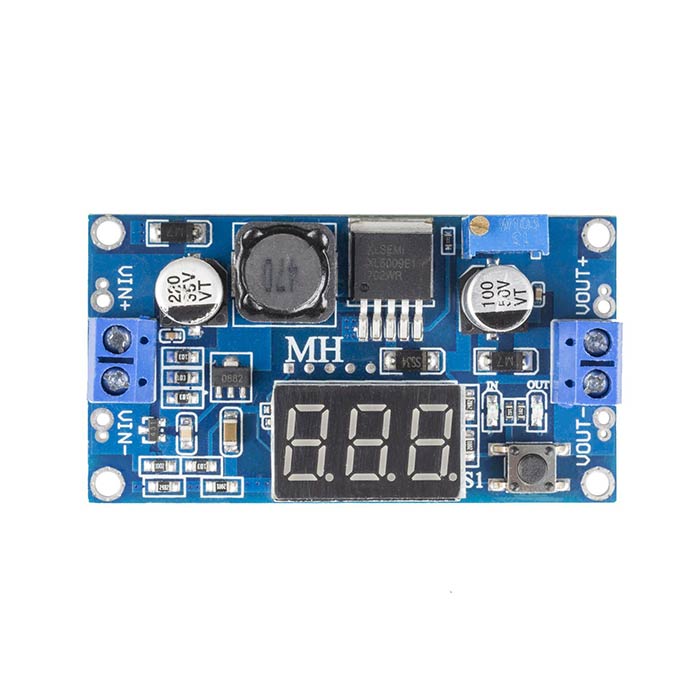

XL6009 DC-DC Adjustable Boost Module Voltmeter Display with Adjustable Output

SunFounderSKU: ST0028

In stock


A 4A switching current BOOST module with high performance applies XL6009E1 as the core chip. XL6009E1 applies the second generation of high-frequency switching technology, thus performing far better than the first generation LM2577. XL6009 boost module has a lower cost, higher performance. By the way, LM2577 will soon be eliminated.


  • Ultra-wide input voltage 3V~32V (with the voltage less than 5V, boost works smoothly, but the condition is different for the seven-segment display.)
  • The optimum working voltage is 5~32V, and the output voltage of the ultra-wide boost is 5V~35V.
  • Built-in 4A High-efficiency MOSFET switch tube with an efficiency of up to 94%. (LM2577 has only 3A current.)
  • An ultra-high switching frequency of 400KHz makes it possible for the filter capacitor with a small capacity to realize the smaller ripple wave. (LM2577 has only a 50KHz frequency.)
  • Size: 68 x 37mm
  • Weight: 24g

Package List

  • XL6009 Boost Module x 1
