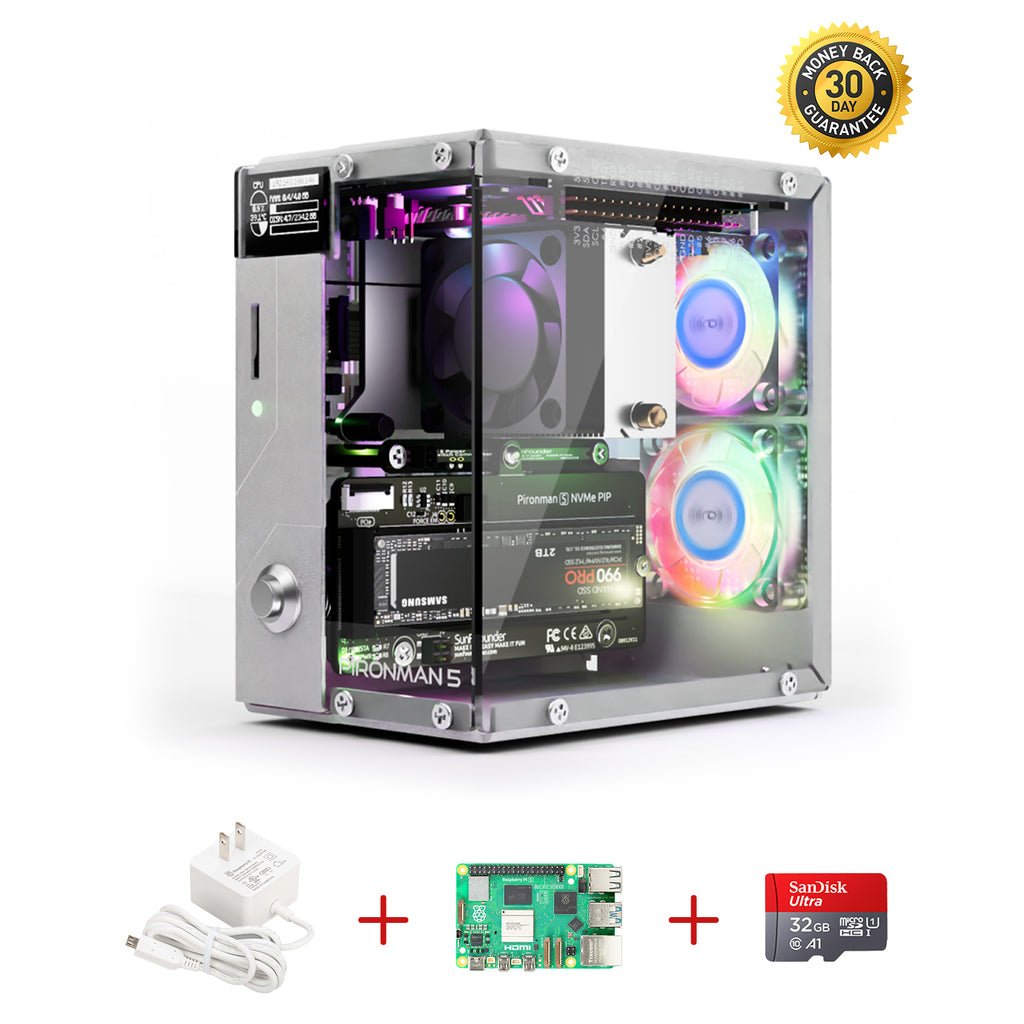

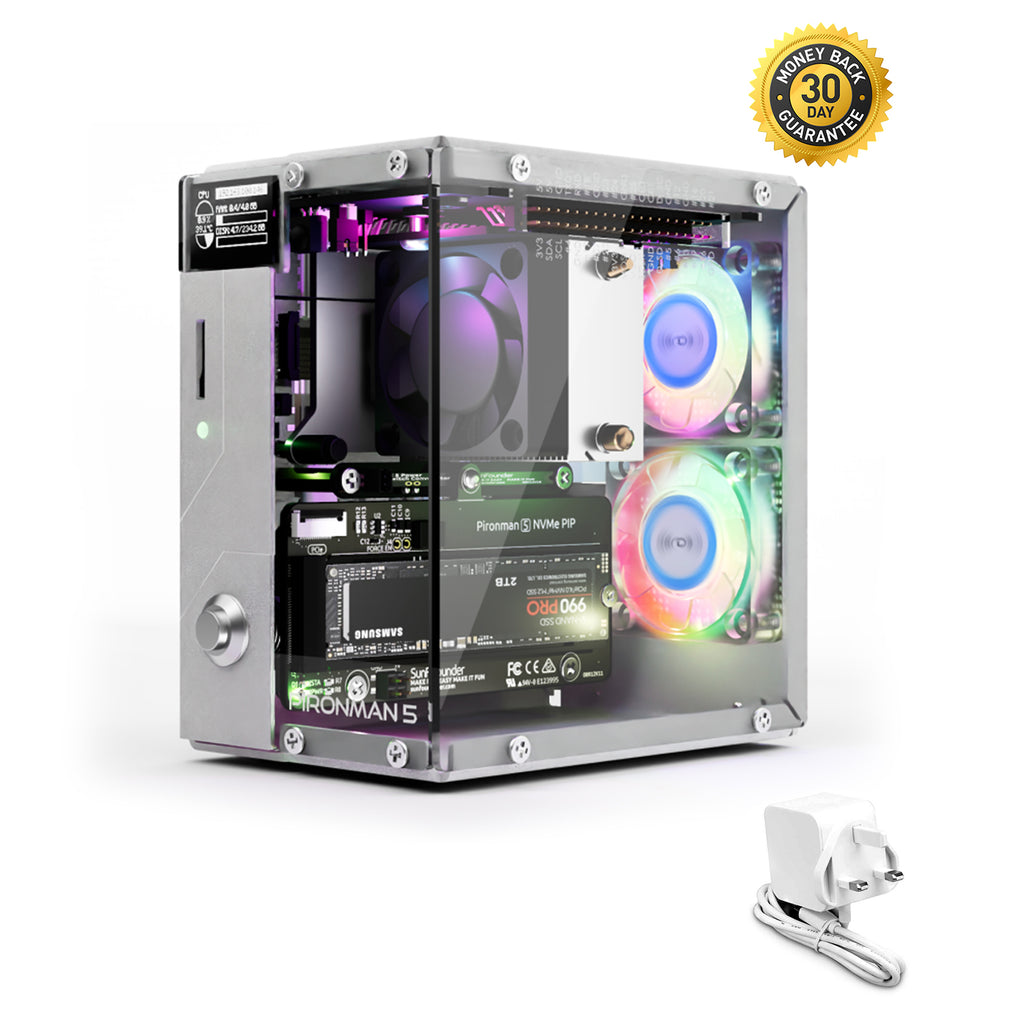

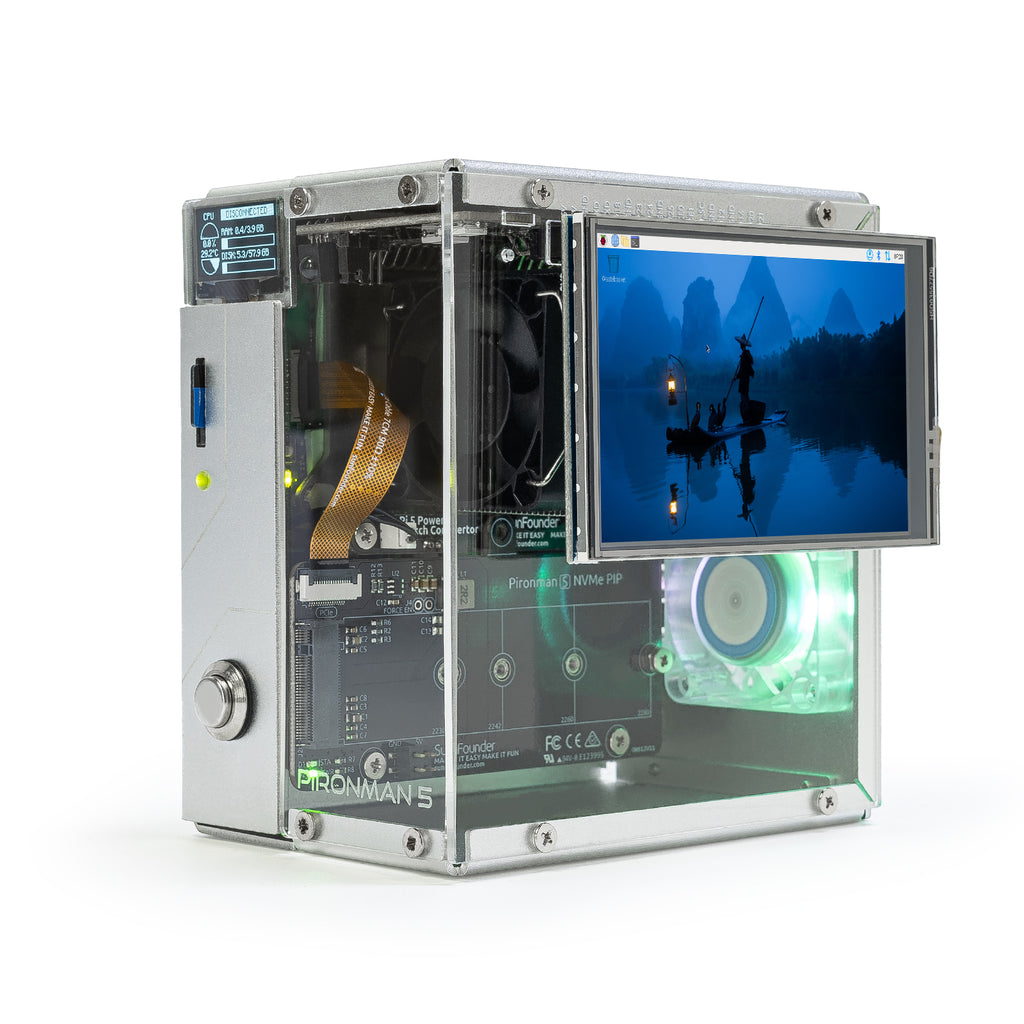

Pironman 5 NVMe M.2 SSD PCIe Mini PC Case for Raspberry Pi 5 (EN/DE/JP Online Documents)

SunFounderSKU: CN0446D
filler

Price:
$79.99
Stock:
In stock

Description

Free Shipping

Payment & Security

PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

机箱5-banner.jpg__PID:e4379d6c-f02e-4182-9a13-69f3f6bc61af
A+2.jpg__PID:672fa120-a203-432b-b17c-55dfd0b5d480
lQDPJwYOiWL7dWnNAljNA8qwosOTbwaR38EGP_81QBYwAA_970_600.jpg__PID:68981300-5d9f-4069-9874-9e2301a7c602
A+4.jpg__PID:ada46d6e-bbd3-4765-8def-ca36275db838
A+3.jpg__PID:a120a203-032b-417c-95df-d0b5d4802cc8
Pironman-5机箱上架A+600-2.jpg__PID:b0f24f84-492d-47ba-be09-e682f8740431

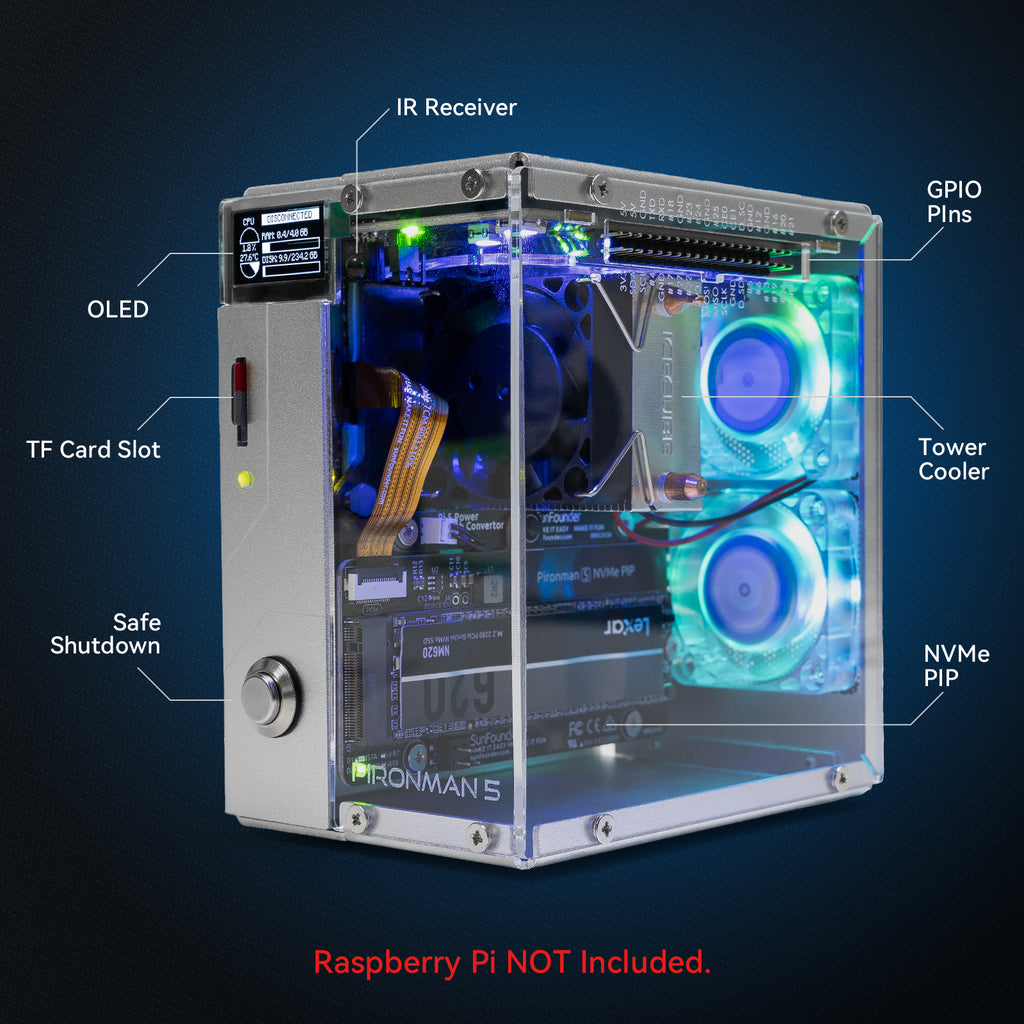

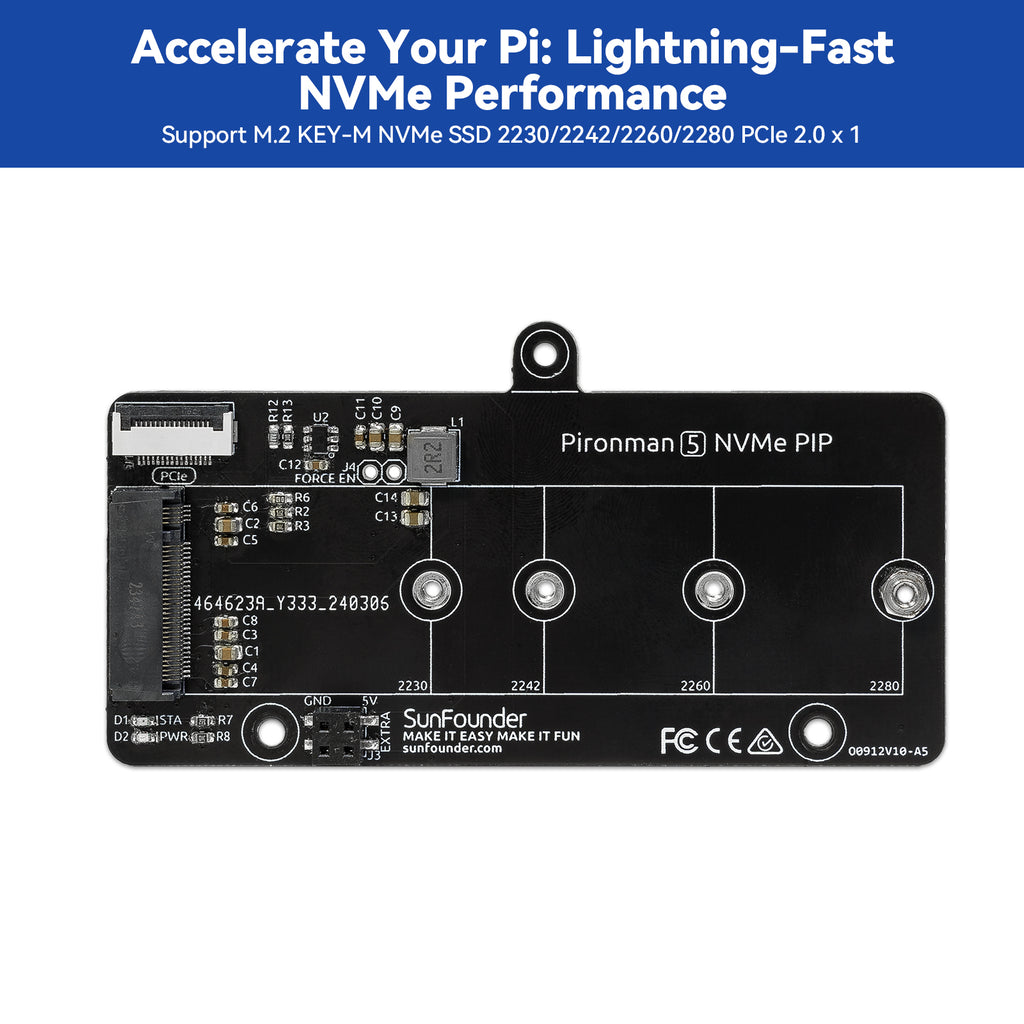

The Pironman 5 includes the Pi5 NVMe PIP (PCIe Peripheral Board), a PCIe adapter board specifically designed for NVMe solid-state drives. This board supports four sizes of NVMe SSDs: 2230, 2242, 2260, and 2280, all of which can be installed in an M.2 M key slot. The connection is certified for Gen 2.0 speeds (5 GT/sec), but can be forced to Gen 3.0 (10 GT/sec) for faster performance.

Compatible NVMe SSDs include:
ADATA Legend 700, 800, and XPG SX8200 Pro
Axe Memory Generic Drive
Crucial P2, P3, P3 Plus M.2
Inland PCIe NVMe SSD
KIOXIA EXCERIA and EXCERIA G2 NVMe SSD
Kingston KC3000, NV2
Lexar NM710, NM620
Netac NV3000, NV2000 NVMe SSD
Origin Inception TLC830 Pro NVMe SSD
Pineberry Pi Pinedrive (2280)
PNY CS1030
Sabrent Rocket 4.0, Rocket Nano
Samsung 970 EVO Plus, 980, 980 Pro
Team MP33
Western Digital SN850, SN740, SN570, SN530, and Black
SN750 SE (Phison Controller), and Blue SN550/SN580 series
(If you know how to install the latest rpi-eeprom updates, pieeprom-2024-01-24.bin fixed the Western Digital Blue SN550 nvme boot issue. For more information, visit https://forums.raspberrypi.com/viewtopic.php?t=364327)XPG GAMMIX S70 BLADE, SX8200 Pro

Incompatible NVMe SSDs:
Due to compatibility issues, we recommend avoiding the following NVMe SSD drives equipped with a Phison controller:

Western Digital Green SN350 series,Black SN850 series,
Black SN770
Inland tn446 nvme drive
Corsair MP600 SSD
Samsung PM991
Kingston OM8SEP4256Q-A0
Transcend 110Q (TS500GMTE110Q)
Specifically, SN350 and SN570 prevent the Raspberry Pi 5 from booting at all.

The Detailed Online Tutorials can be found here: https://docs.sunfounder.com/projects/pironman5/en/latest/
Online Tutorial: This tutorial is available in the following languages
Deutsch Online-Kurs

日本語オンライン教材
English Online-tutorials
Please click on the respective links to access the document in your preferred language.
