7" HDMI 1024x600 LCD Screen Display for Raspberry Pi, Support AV/VGA/HDMI with Built in Speaker

SunFounderSKU: CN0005
filler

Plug Type: US Plug
Price:
$62.99
Stock:
In stock

Description

Free Shipping

Payment & Security

PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

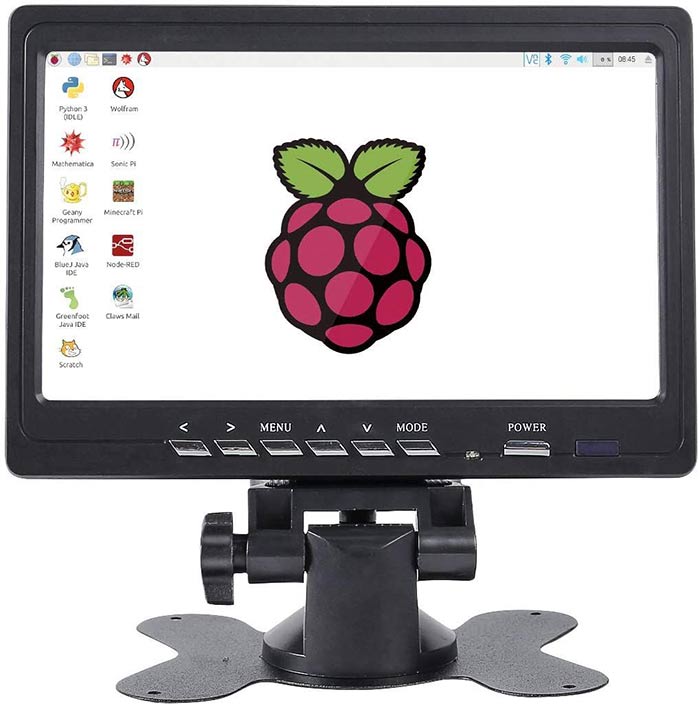

This is a standard 7-inch full-color display with high resolution and lower power consumption. It can be applied as a Raspberry Pi display and works perfectly with Raspberry Pi 3, 2, and 1 Model B/B+. Just connect it to the RPi with the HDMI cable in the kit. Also, it can be connected to a CCTV camera via the AV1 port, or vehicle rear view camera (AV2 port) as the monitor. For the latter use, just plug one end of the cable to the display, and the other to the port in the car (the red wire is Power, and black is GND). The real-time video will be on the monitor once it gets a signal when you start to reverse to park the car.

For more information, refer to: http://wiki.sunfounder.cc/index.phptitle=Raspberry_Pi_7%22_HD_1024*600_TFT_LCD_Screen_Display_Settings

Features

  • Working perfectly with Raspberry Pi 4 Model B/3B+/3B/2B and RPi 1 Model B+

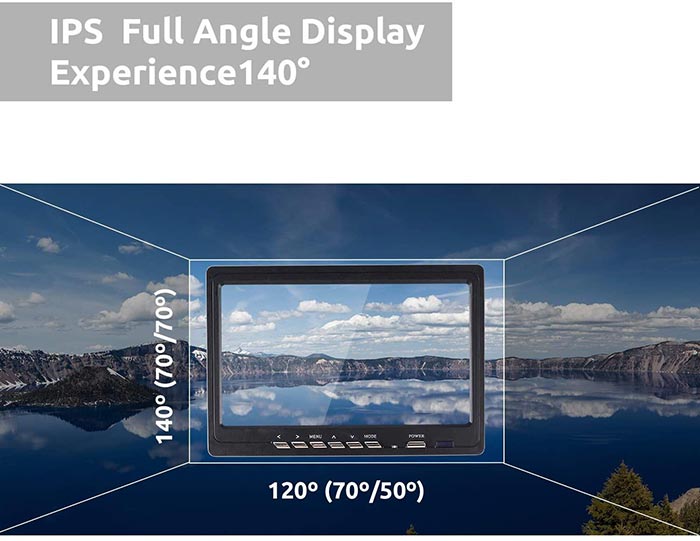

  • High-resolution picture, Using the IPS screen get a full angle display experience, upgrade the battery power with lower power consumption than the old one.

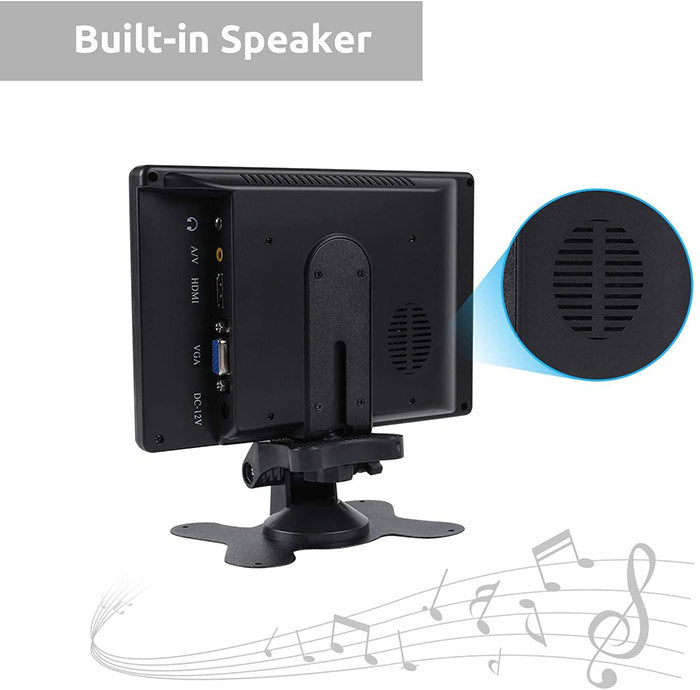

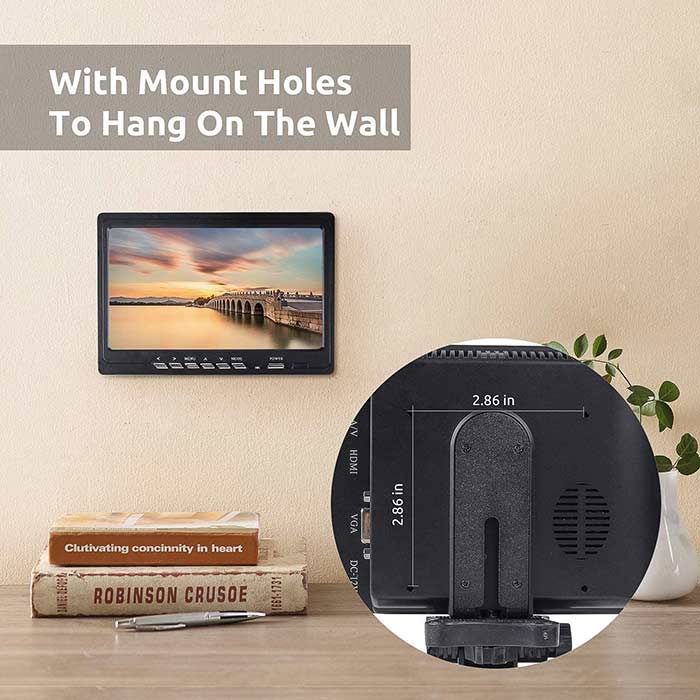

  • Standard 75 x 75 mm wall mount holes. Add 4 screws ports support wall hang type and built-in speaker on the back.

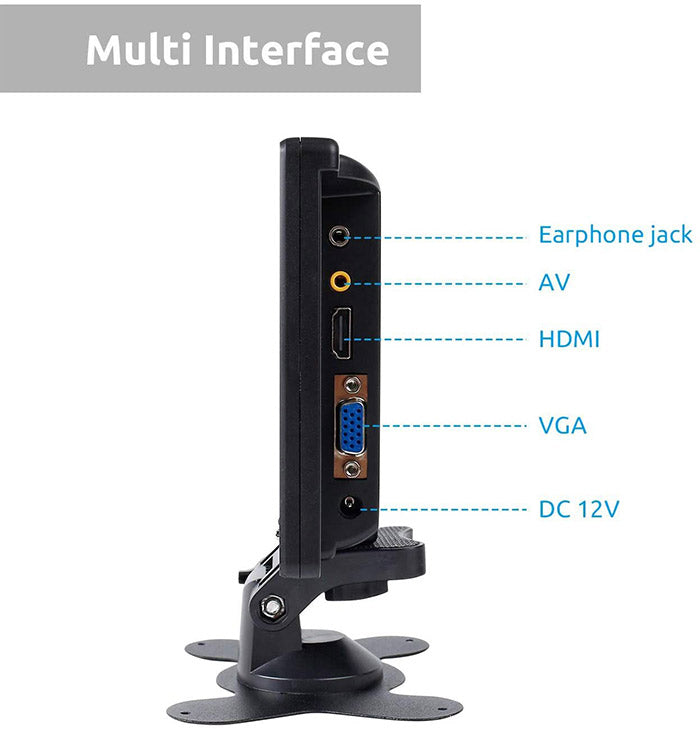

  • Designed with power indicator; earphone, and AV, HDMI, VGA, and DC 12V power ports. Add a key button “^ ” can support Rotation function, used to rotate the display 180°and flip horizontally when no OSD; select the previous.
  • Compatible with CCTV cameras and rearview cameras. Detailed instructions for the display setting in the kit.

Specification

  • Screen size: 7 inch display
  • Ration: 16:9/4:3 adjustable
  • Display Component: color TFT-L

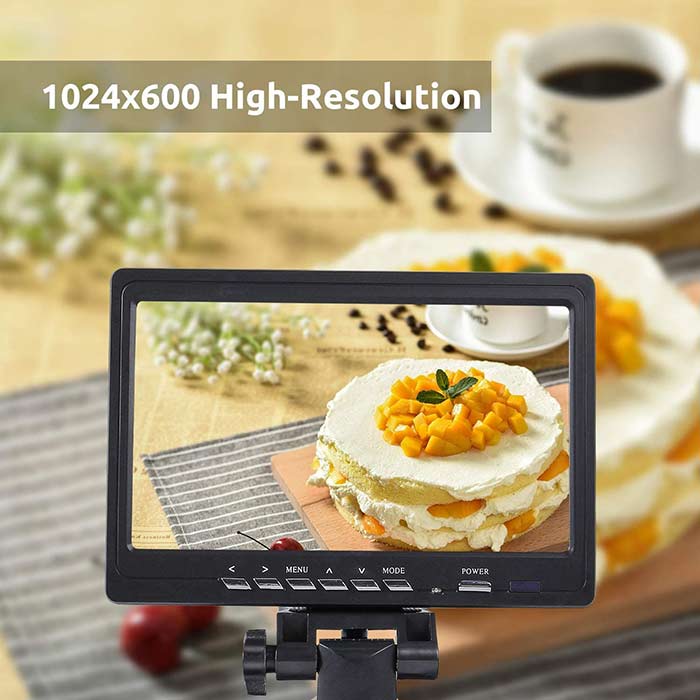

  • Resolution: 1024 x 600 pixels
  • Support adjust the brightness, contrast, color
  • Input signal: PC (VGA), AV1, AV2, HDMI
  • Power: DC 12V
  • Consumption: ≤10W Typical
  • AV color system: PAL/NTSC/Auto
  • Operation mode: key operation and remote control
  • Automatically displays blue screen when no signal
  • Parking rearview priority

Package List

  • 7 inch TFT LCD Screen x 1
  • Instruction Manual x 1
  • IR Remote Controller x 1
  • 12V 1A Power Supply x 1
  • Power Cable x 1

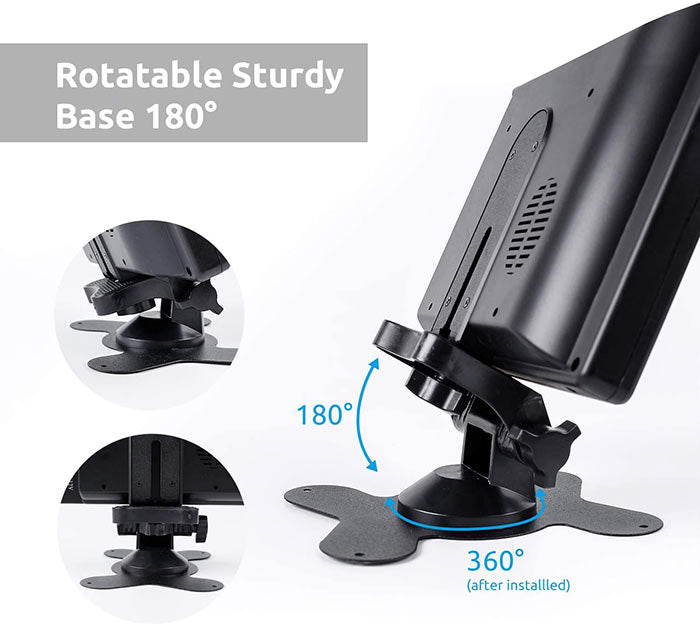

  • Rotatory Stand x 1
  • Adhesive Tape x 1
  • Auxiliary Cable x 1
