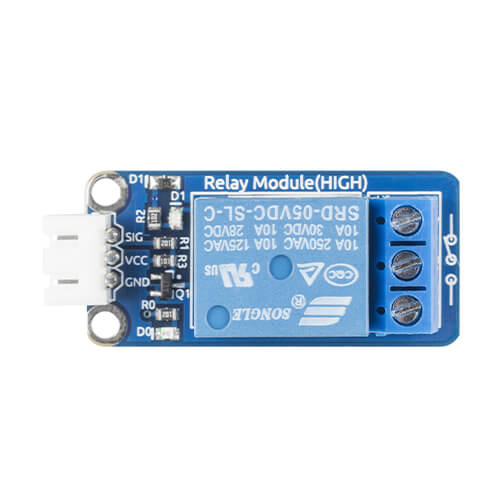

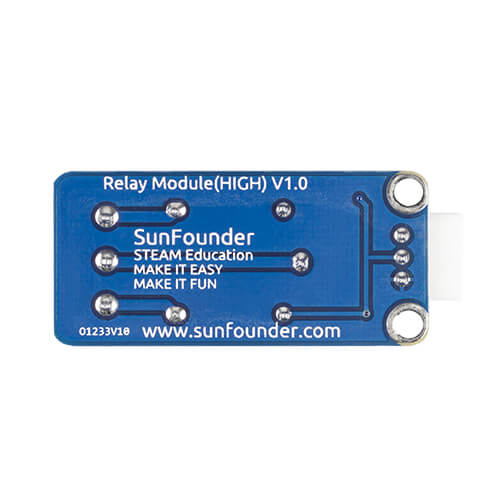

1 channel relay module with a 5V relay inside.
Trigger voltage: 2.5-5V (High)，rated load: AC125~250V/10A, DC28~30V/10A.
This module is widely used in Raspberry Pi, Arduino, 8051, PIC, DSP, ARM, AVR, MSP430, TTL logic, etc.
With power indicator and signal output indicator (Lights up at high level).
The input connector is equipped with an anti-reverse plug connector for secure and safe wiring, and the corresponding cable is provided.
- Trigger Voltage: 2.5-5V (High)
- Trigger Current: 5mA
- Max. Current: 190mA
- Rated load: AC125~250V/10A, DC28~30V/10A
- Max. switch voltage: 250VAC, 30V
- With power indicator and signal output indicator (Lights up at high level)
- Size: 47mm * 20mm * 17mm (1.85 inch *0.79inch * 0.67 inch )
- SIG: Send a HIGH level to let the relay closed
- VCC: Connect to 5V, 3.3V is also available.
- GND: Connect to GND
- NO: Normally open
- COM: Common pin
- NC: Normally closed

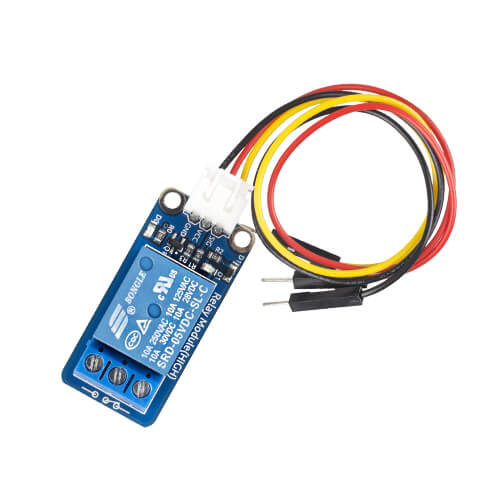

- Relay Module x 1
- 3-Pin anti-reverse jumper wire x 1
