5MP Camera Board - Night Vision & Adjustable-Focus Lens for Raspberry Pi

SunFounderSKU: cam002
filler

Price:
$23.99
Stock:
In stock

Description

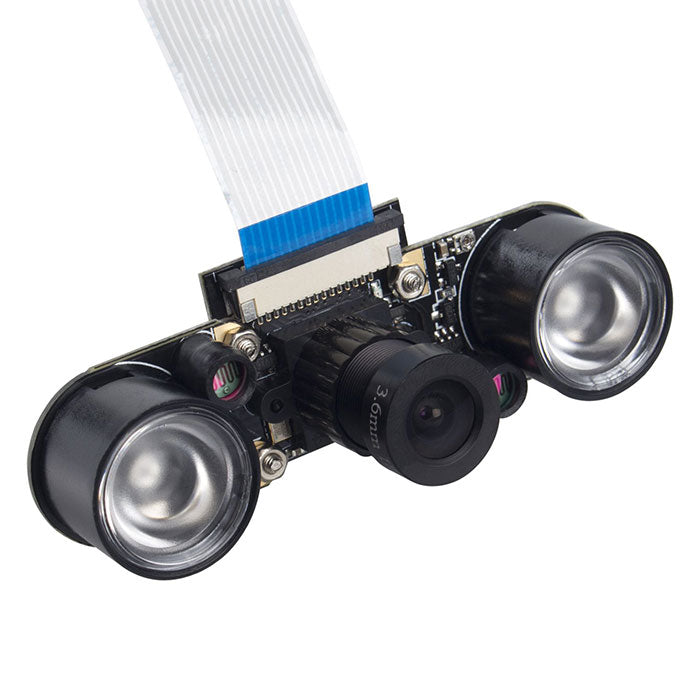

The Raspberry Pi Night Vision Camera uses the same OV5647 sensor as the standard Raspberry Pi camera, and is, therefore, able to deliver a crystal clear 5MP resolution image or 1080p HD video recording at 30fps! It features two high-intensity Infrared LED spotlights for nighttime recording! The IR LEDs are powered directly from the CSI port and are capable of lighting an area at a distance of 1m to 2m. The camera also features an adjustable 3.6mm focal length lens and a 60-degree viewing angle.

Warning:
The LED's intensity is limited by the Raspberry Pi power supply, please ensure you have an adequate Raspberry Pi power supply installed. LEDs running at full intensity can get hot, please take care during prolonged use.



Installation

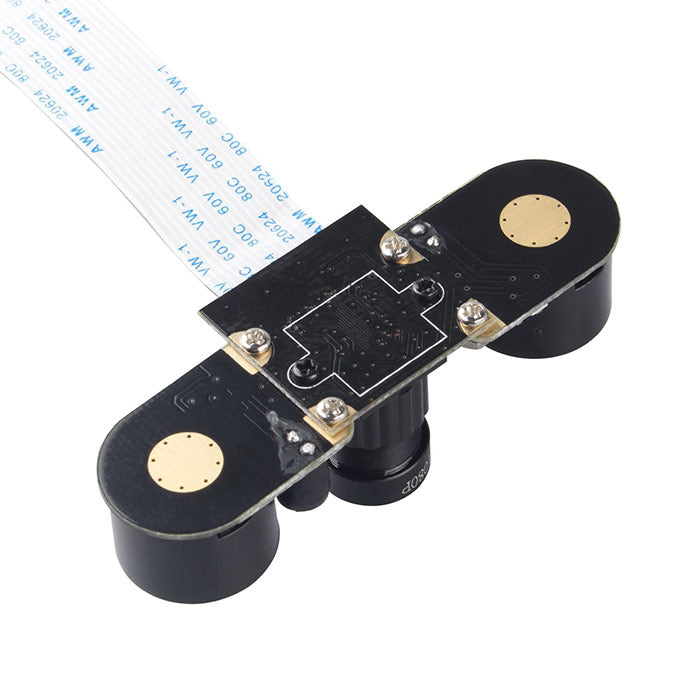

The IR LEDs can be bolted to the body of the camera using the included bolts. This connects the 3.3V supply to the boards and secures them in place. If you need to adjust the ambient light threshold (to change when the infrared LEDs toggle), there is a tiny adjustable potentiometer on each LED board, you can turn it to change the threshold. Please ensure any fitting or adjusting is completed prior to plugging the device into the Raspberry Pi and switching it on.



Features

  • Compatible with all revisions of the Raspberry Pi
  • 5 Megapixel OV5647 Camera
  • 2 x 3W high-power 850 infrared LEDs: Onboard photoresistor to detect ambient light; Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED



Specification

  • Sensors: 0v5647
  • Static Image: 5 megapixels
  • Aperture (F): 1.8
  • Focal Length: 3.6MM (adjustable)
  • Diagonal: 60 degree
  • Sensor Resolution: 1080p
  • Dimension: 25mm x 24mm
  • 4 screw holes: Used for both attachment and 3.3V power supply; Supports up to 2 infrared LEDs

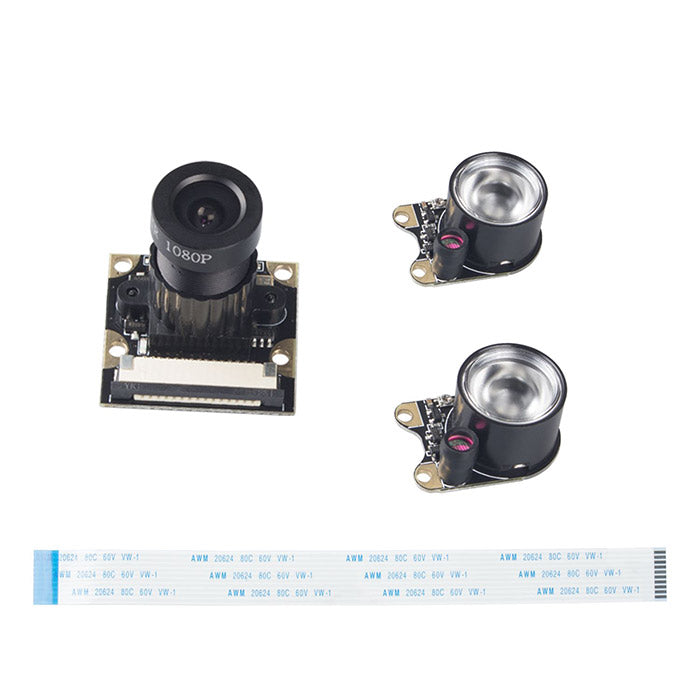

Package List

  • Raspberry Pi Camera Board x 1
  • Infrared LED Board x 2
  • 30cm FFC Cable for Zero/Zero W x 1
  • 50cm FFC Cable for Raspberry Pi 4B/3/2/1B+ x 1
  • Small Screwdriver x 1
  • Camera Holder Case x 1
  • Mounting screws
