IMU Breakout - MPU-9250

SunFounderSKU: as007
filler

Price:
$8.95
Stock:
In stock

Description

The MPU-9250 IMU Breakout features the 9-axis MEMS sensor. Each of these 9DoF breakouts features an MPU-9250 with a System in Package (SiP) that combines two chips: the MPU-6500, which contains a 3-axis gyroscope as well as a 3-axis accelerometer, and the AK8963, which features a 3-axis magnetometer. This breakout has been designed to be smaller than some of our other offerings to fit in smaller projects. However, if you plan to use a breadboard, or secure the IMU board to a project with something like epoxy, the mounting holes can be easily snapped off.

According to InvenSense, “Gyro noise performance is 3x better, and compass full-scale range is over 4x better than competitive offerings.” The MPU-9250 uses 16-bit Analog-to-Digital Converters (ADCs) for digitizing all nine axes, making it a very stable 9 Degrees of Freedom board.

Nice sensor, right? So we made it easy for you to get right into your next project. The surface-mount sensor is soldered onto a PCB and comes with a 3.3V regulator and level shifting so you can use it with a 3V or 5V logic microcontroller without worry.

Specification

  • Input Voltage: 3.3/5V
  • Communication Mode: standard IIC/SPI communication protocol (built-in 16bit AD converter chip, 16-bit data output)
  • Size: 15mm*25mm*3mm
  • Digital-output X-, Y-, and Z-axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1,000 and ±2,000°/sec and integrated 16-bit ADCs
  • Digital-output triple-axis accelerometer with a programmable full-scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit ADCs
  • 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
  • Digitally programmable low-pass Gyroscope filter
  • Gyroscope operating current: 3.2mA
  • Accelerometer normal operating current: 450µA
  • Magnetometer normal operating current: 280µA at 8Hz repetition rate
  • Detachable mounting holes

Package List

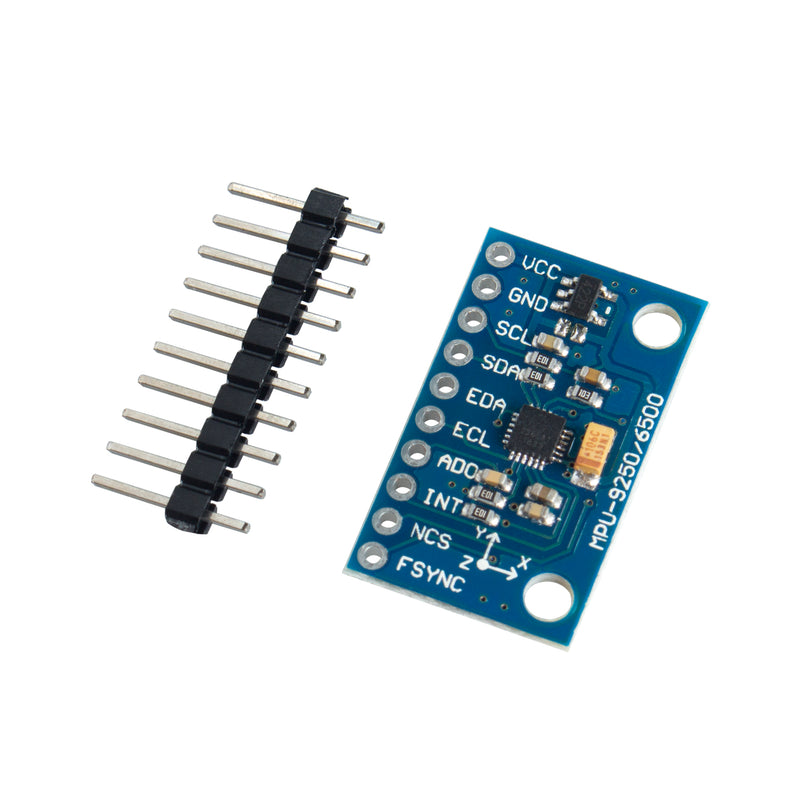

  • MPU9250 Module x 1
  • 10pin Straight Headers x 1
