Aluminum Case with Dual Fan for Raspberry Pi 4B (Dual Fan)

SunFounderSKU: CN0200
filler

Price:
$16.99
Stock:
In stock

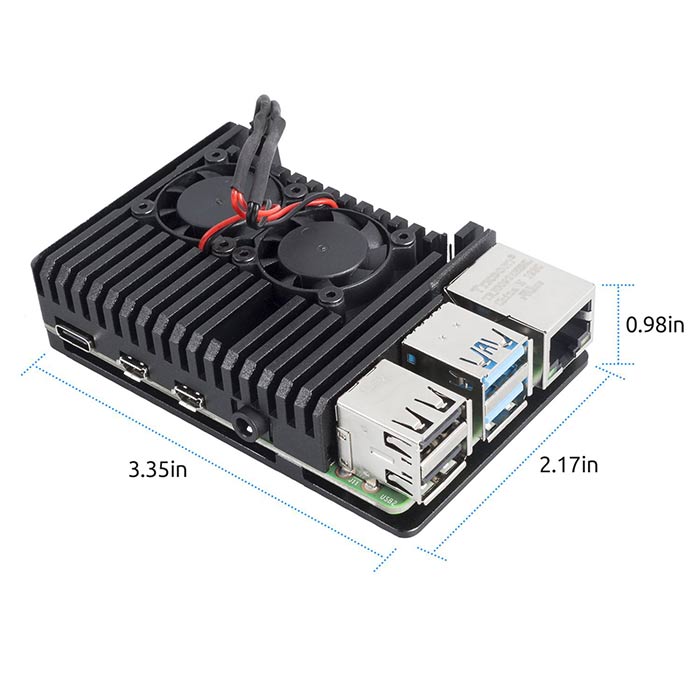

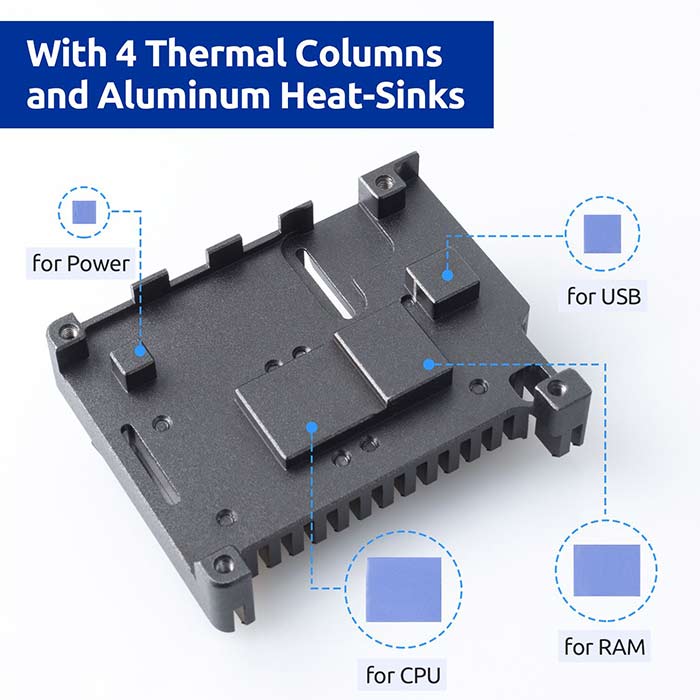

SunFounder Raspberry Pi 4 Case Only Specially for Raspberry Pi 4 Board. This Dual Fan Aluminum Heatsink Case is made of Aluminum Alloy Material, Portable& Accurate slot size, Provide Good Heat Dissipation for raspberry pi 4 board only. It comes with 4 thermal pads to provide thermal contact between the CPU and top case, and a handy allen key and set of hex bolts to attach the case together.

  • Outline Dimension: 25×25×07MM
  • Rated Voltage: DC 5V
  • Operating Voltage Range: DC3.5V~DC5.5V
  • Starting Voltage: DC3.5V
  • Rated Current: 0.08A±0.01A
  • Lock Rotor Current: 0.50A
  • Rated Power Consumption: 0.4W±0.1W
  • Speed: 7500R.P.M.±10
  • Air Flow: 6.21CFM
  • Static Pressure: 1.22MMH2O
  • Noise: 19.28dB(A)
  • Life Expentancy: 30000h
  • Rotaing Direction: CCW

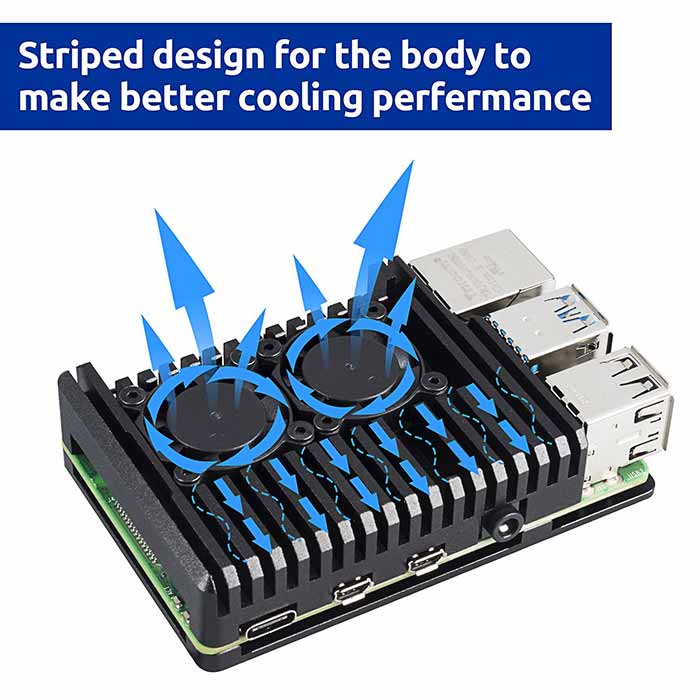

It will protect your Raspberry Pi 4 and give you the best passive cooling we've seen in our extensive testing, brings you 20-30°C of passive cooling under full CPU load.

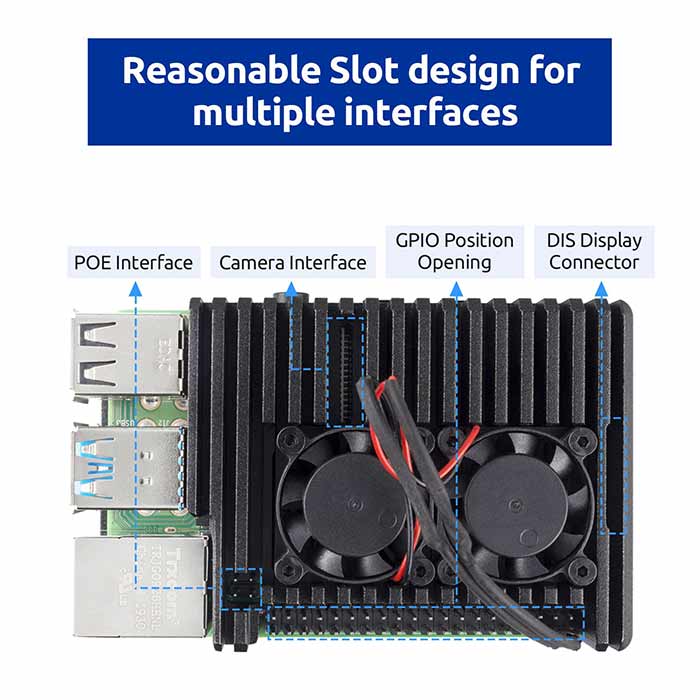

SunFounder Raspberry Pi 4 Aluminum Case gives you access to all of the ports, pins, and connectors. Such as GPIO, CSI, DSI, POE, and 40 Pins are reserved, which does not prevent other uses.Shell slot and port size designed to be accurate and the open design ensures that wifi/Bluetooth signal transmission is not affected.

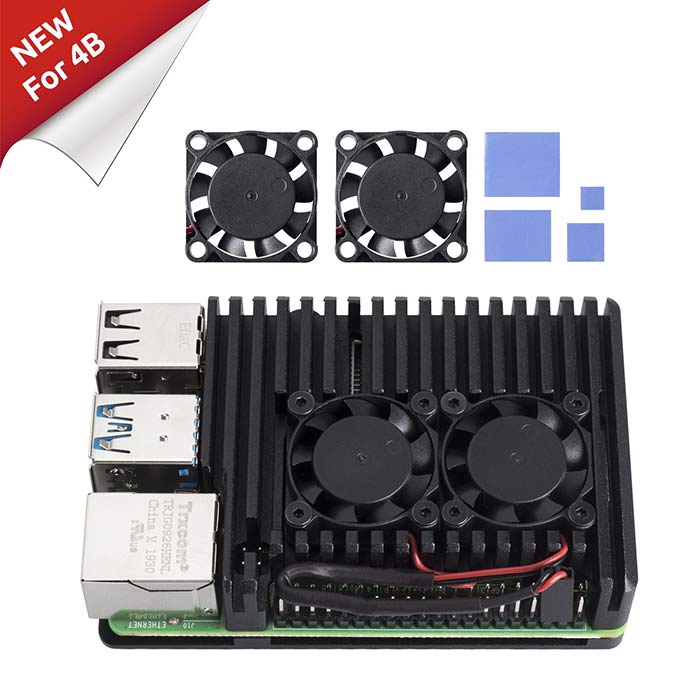

  • 1 x Aluminum Alloy Cooling Case

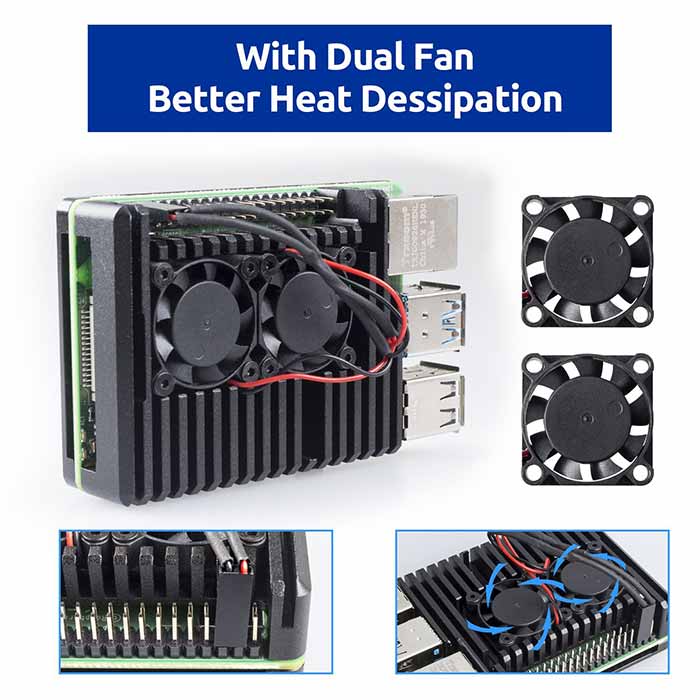

  • 1 x Dual Cooling Fan
  • 4 x 3W Silicone Pads(different size)
  • 14 x M2.5*10 Screws
  • 1 X Screwdriver
  • 1 X Installation Manual


    Note: Make sure that your Pi is powered off and unplugged before you fit the case.
