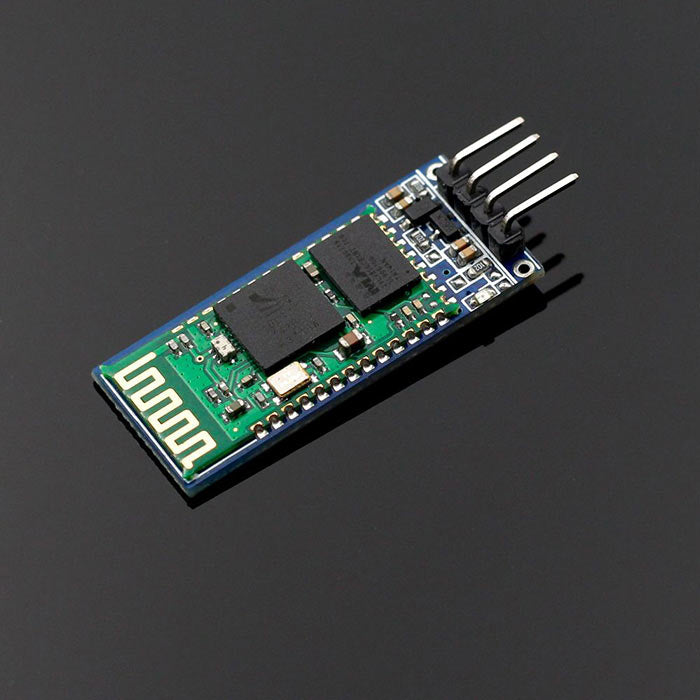

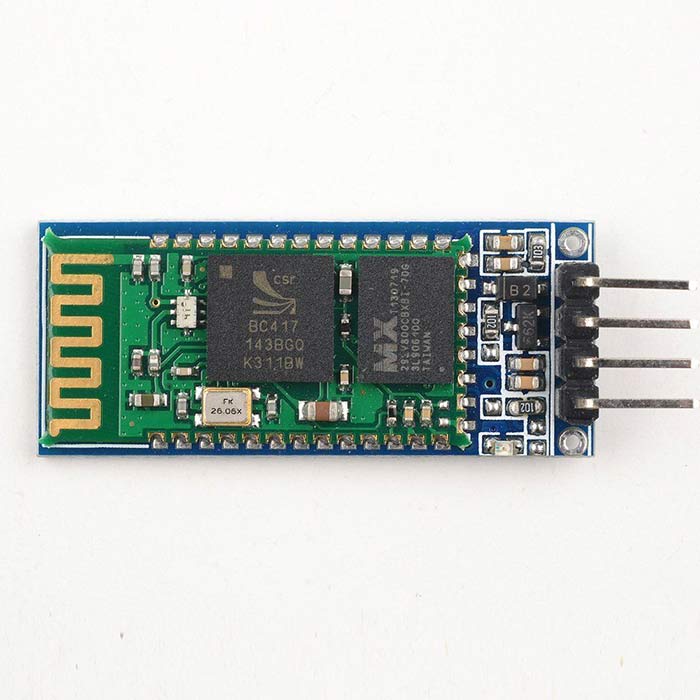

Bluetooth Transceiver Module HC-06 RS232 4 Pin Serial

SunFounderSKU: MD0056
filler

Price:
$12.99
Stock:
In stock

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

This Bluetooth module can easily achieve serial wireless data transmission. Its operating frequency is among the most popular 2.4GHz ISM frequency band (i.e. Industrial, scientific and medical). It adopts Bluetooth 2.0+EDR standard. In Bluetooth 2.0, signal transmit time of different devices stands at a 0.5 seconds interval so that the workload of bluetooth chip can be reduced substantially and more sleeping time can be saved for bluetooth. This module is set with serial interface, which is easy to use and simplifies the overall design/development cycle.

More details can be found in http://wiki.sunfounder.cc/index.php?title=Bluetooth_Transceiver_Module_HC-06

  • Bluetooth module board Series.
  • With LED indicator light, use 150mA and 3.3V regulation chip.
  • With VCC、GND、TXD、RXD foot for the Bluetooth.
  • With "Research" button(ON/OFF/WAKE foot for it, external MCU output "High level" can control module to research).
  • Compatible with Bluetooth master module", slave module" or master-slave(whole) module.
  • It's an HC-06 Bluetooth module.
  • Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
  • Works with any USB Bluetooth adapters.
  • Default Baud Rate: 9600,8,1,n.
  • Built-in antenna.
  • Coverage up to 30ft.
  • Bluetooth version: V2.0+EDR
  • Operating voltage: 3.3V
  • Default Baud Rate: 9600,8,1,n.
  • Signal coverage: 30ft

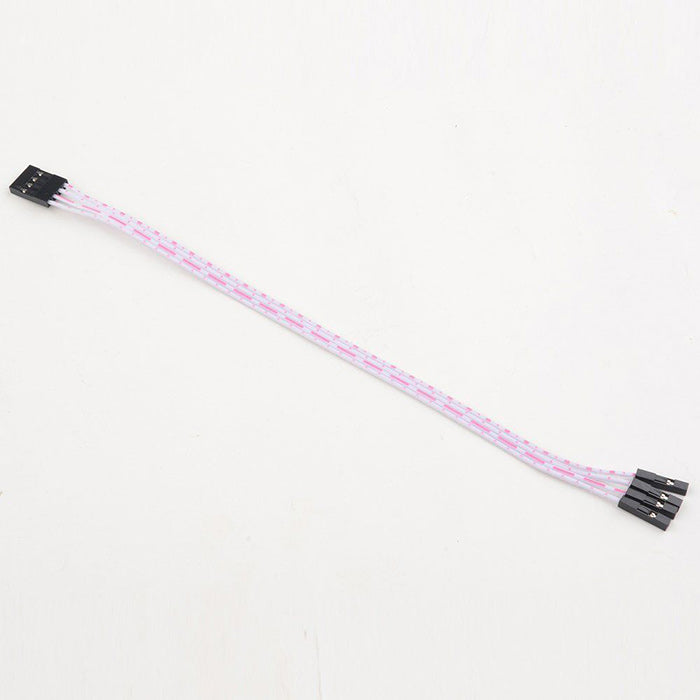

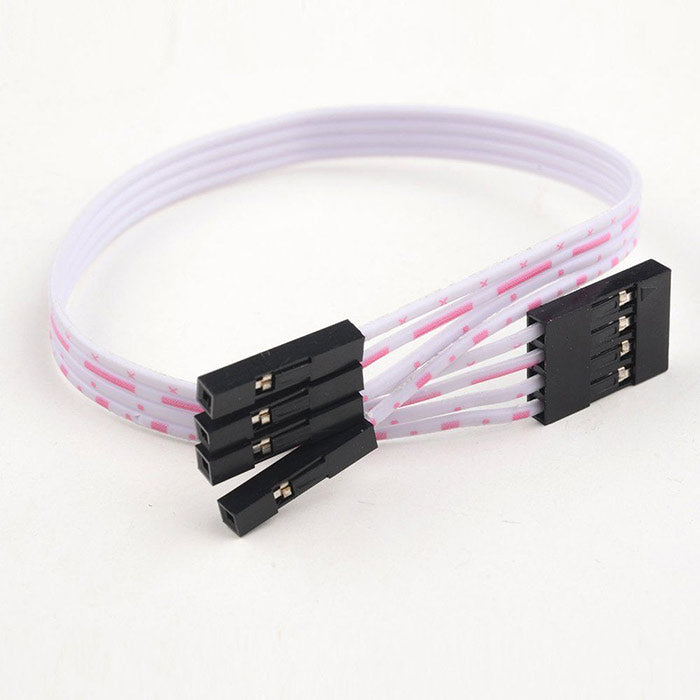

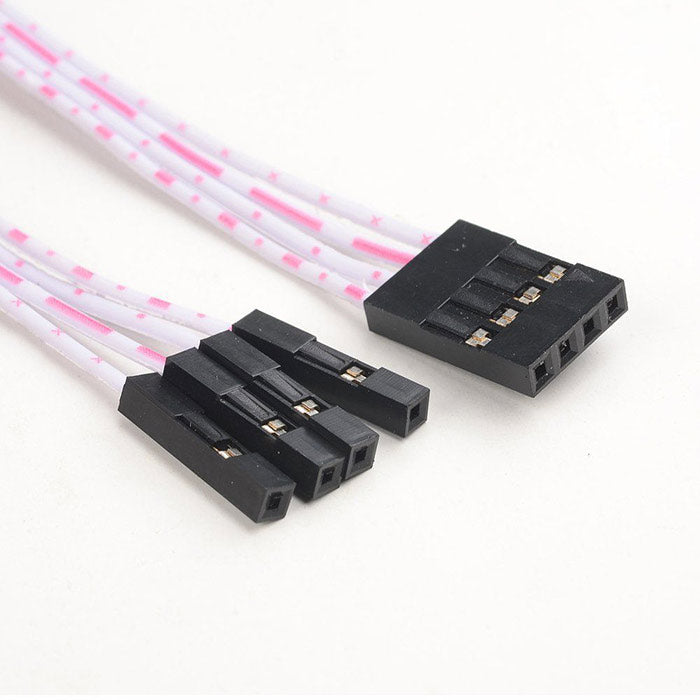

  • Cable length: 21.5cm
  • Item size: 4.3 * 1.6 * 0.7cm
  • Item weight: 3g
  • Package size: 9 * 3 * 1cm
  • Package weight: 8g
  • Bluetooth module board Series
  • With LED indicator light, use 150mA and 3.3V regulation chip.
  • With VCC、GND、TXD、RXD foot for the Bluetooth
  • With "Research" button(ON/OFF/WAKE foot for it, external MCU output "High level" can control module to re-search)
  • Compatible with Bluetooth master module"、slave module" or master-slave(whole) module.
  • Input voltage: 3.3~6V
  • Size: 1.55cm*3.98cm
