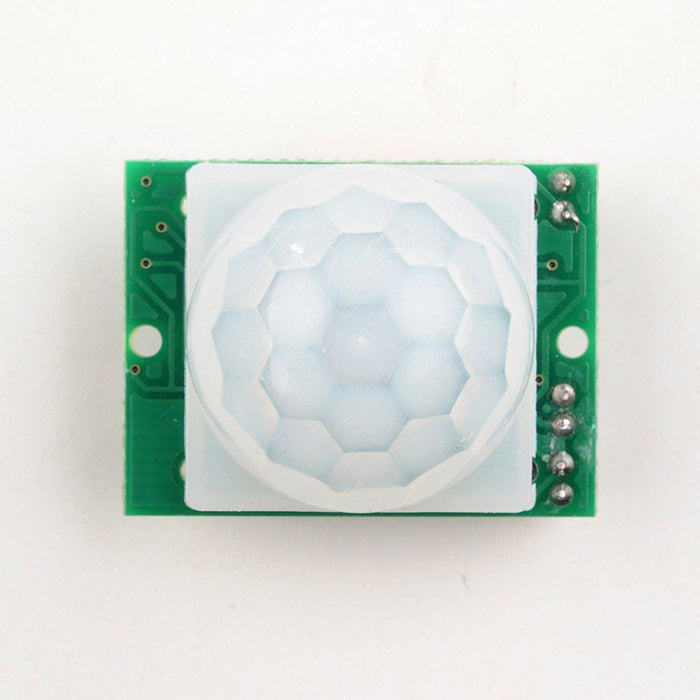

HC-SR501 Human Sensor Module Pyroelectric Infrared (3 pack)

SunFounderSKU: MD0020
filler

Price:
$6.99
Stock:
In stock

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Product Type: HC--SR501 Body Sensor Module
  • Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
  • Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
  • Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds)
  • Board Dimensions: 32mm*24mm
  • Product Type: HC--SR501 Body Sensor Module
  • Operating voltage range: DC 4.5-20V
  • Quiescent Current: <50uA
  • Level output: High 3.3 V /Low 0V
  • Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
  • Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
  • Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds)
  • Board Dimensions: 32mm*24mm
  • Angle Sensor: <100 ° cone angle
  • Operation Temp: -15-+70 degrees
  • Lens size sensor: Diameter:23mm(Default)
