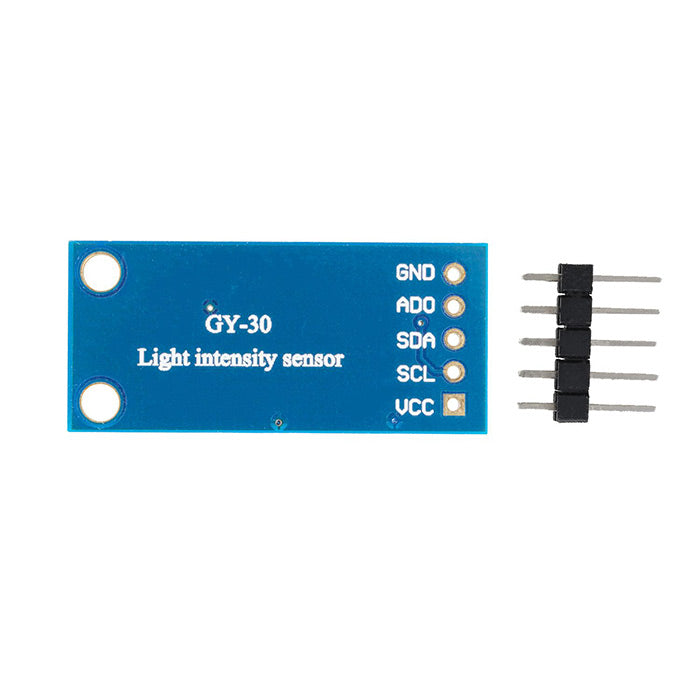

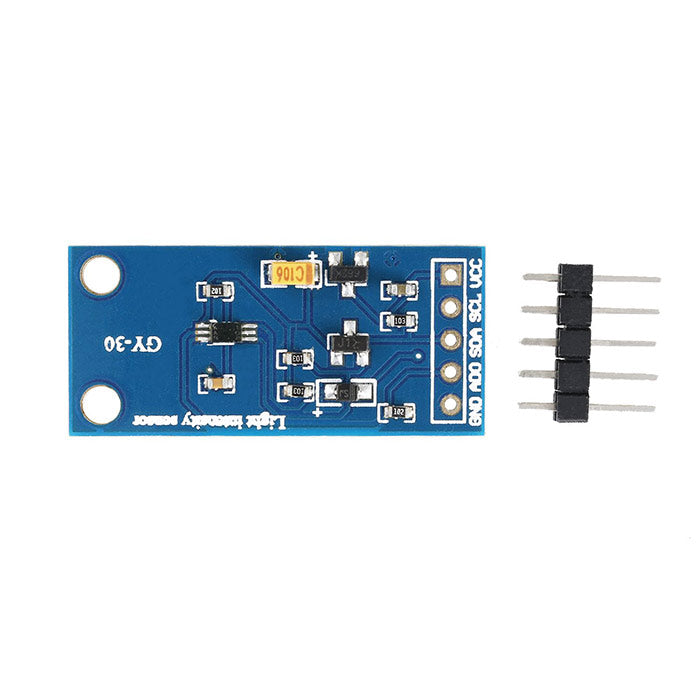

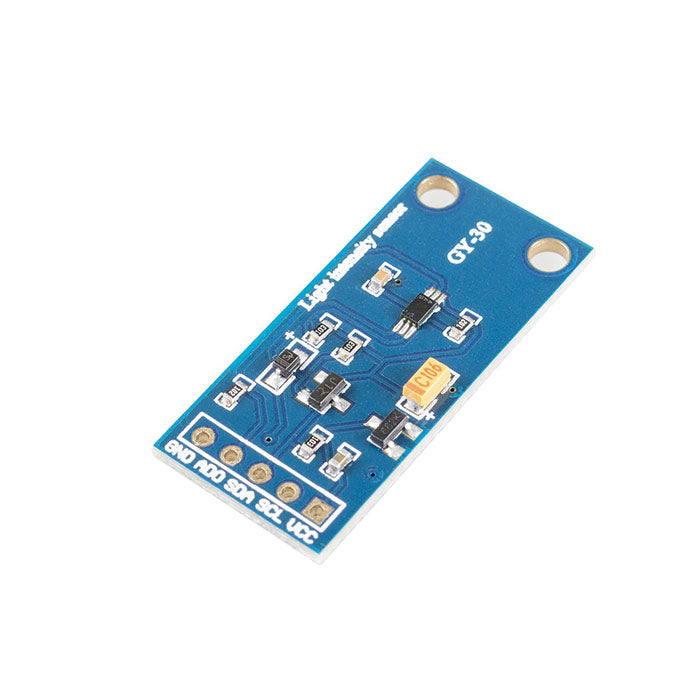

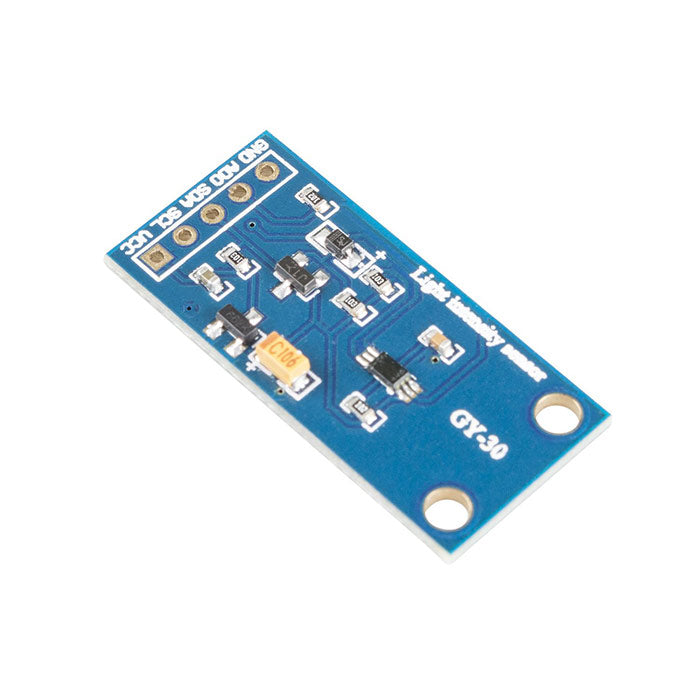

GY-30 BH1750FVI Digital Light Intensity Measuring Module

SunFounderSKU: ST0065
filler

Price:
$5.66
Stock:
Sold out

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

BH1750FVI is a digital Ambient Light intensity Sensor IC for I2 C bus interface, and this kind of IC can adjust the background light of LCD and keyboard according to the intensity data of the collected light. It is possible to detect a wide range of changes of light intensity with high resolution. (1lx-65535lx)

Applications:
Mobile phone, LCD TV, Note PC, Portable game machine, Digital camera, Digital video camera, Car navigation, PDA, LCD display.

  • I2C BI (f / s mode supporting)
  • Spectral responsibility close to human eye distinguish
  • Luminance to digital converter
  • Wide range and high resolution (1 - 65535 lx)
  • Low current by power down function
  • 50Hz / 60Hz Light noise reject-function
  • 1.8V Logic input interface
  • No need of any exterior component
  • Dependency on the light source is little (ex. incandescent lamp, fluorescent lamp, halogen lamp, white LED, Sun Light)
  • It is possible to select 2 types of I2 C slave-address
  • Adjustable measurement result for the influence of optical window
  • Small measurement variation (+/- 20%)
  • The influence of infrared is very small
  • Digital Light Intensity Measuring Module (GY-30) x 1
  • 5pin Header x 1
