Lithium Battery Power Pack for Raspberry Pi, including the Expansion Board and Power Module

SunFounderSKU: CZ0121
filler

Price:
$16.99
Stock:
In stock

Description

Plus Power enables the Raspberry Pi to be used in a moveable manner. Either with two 18650 Li-ion batteries or by the Micro USB port onside, it can support a convenient supply for your Pi (seamless switch between the two supplies).

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Plus Power enables the Raspberry Pi to be used in a moveable manner. Either with two 18650 Li-ion batteries or by the Micro USB port onside, it can support convenient supply for your Pi (seamless switch between the two supplies).

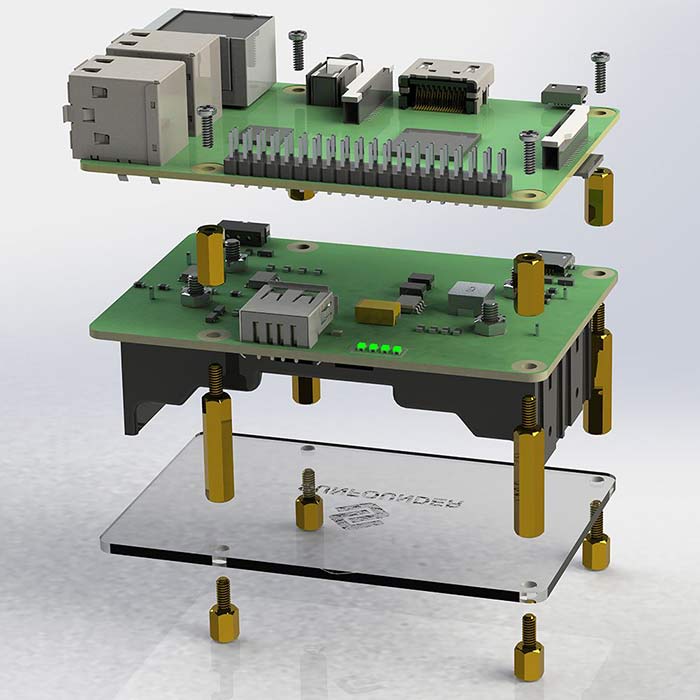

With a protective lid and standoffs, the module can stand and uphold the Pi. And for battery supply, a 4-LED indicator onside can tell the remaining electric quantity by 4 levels. It is quite convenient because you do not need to switch off the Raspberry Pi or Power to switch between the two supply ways or change the batteries).

NOTE:
The module cannot recharge the battery. You need to use extra chargers.

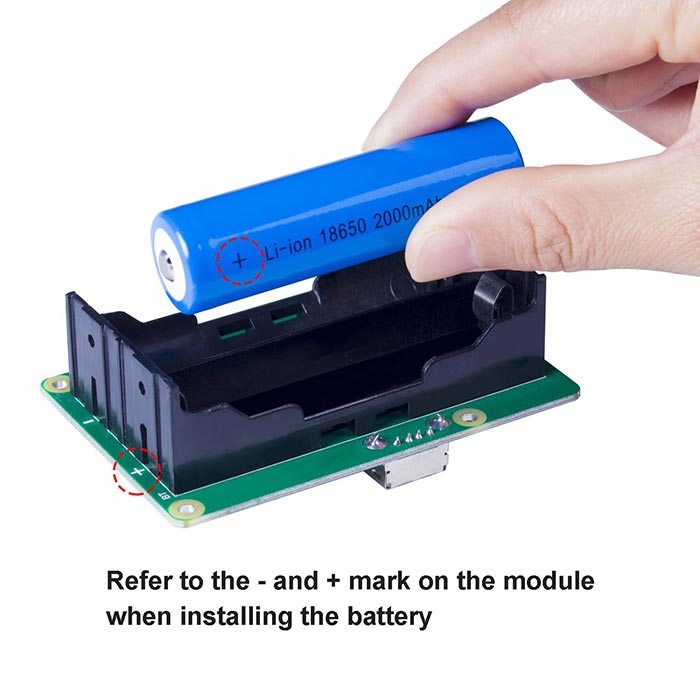

When installing the batteries, pay attention to the poles - place batteries based on the "+" and "-" marks on the module and DO NOT connect to the positive and negative poles inversely.

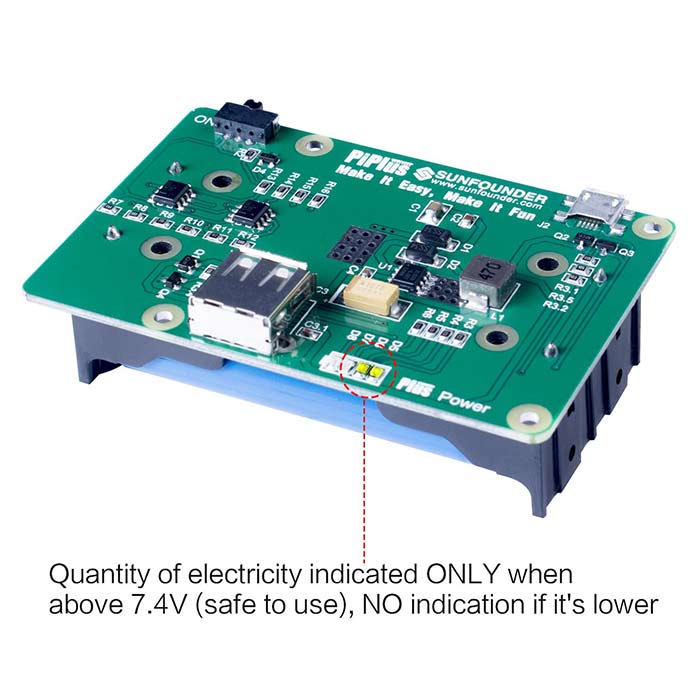

The quantity of electricity is only indicated when it's above 7.4V. Since the safe scope of application is 7.4V-8.4V (2 batteries), if it's lower than 7.4V, the batteries may be hurt. Therefore, when there's no indication of electricity, please recharge the battery immediately.

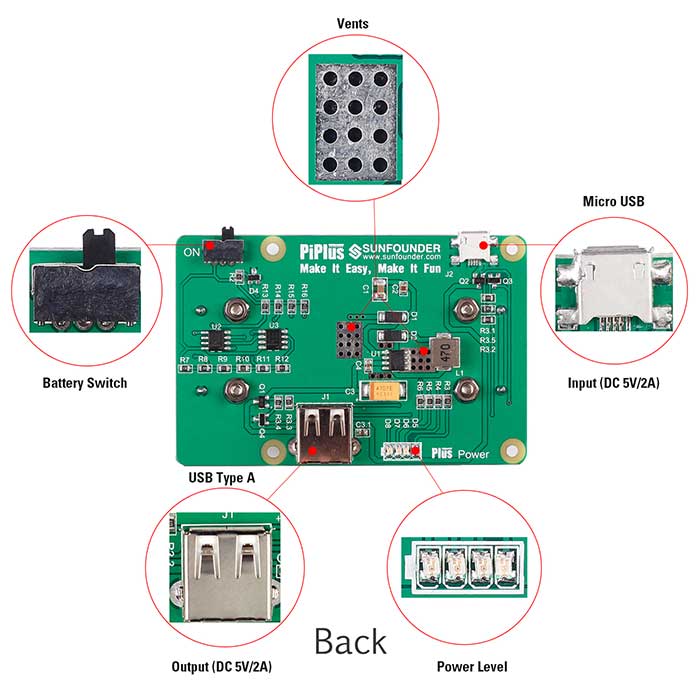

  • A power module specially designed for Raspberry Pi, which enables the Pi to be used in a moveable manner.
  • Powered by two 18650 Li-ion batteries, able to supply the Raspberry Pi with a steady 5V by the XL1509 step-down DC-DC converter module.

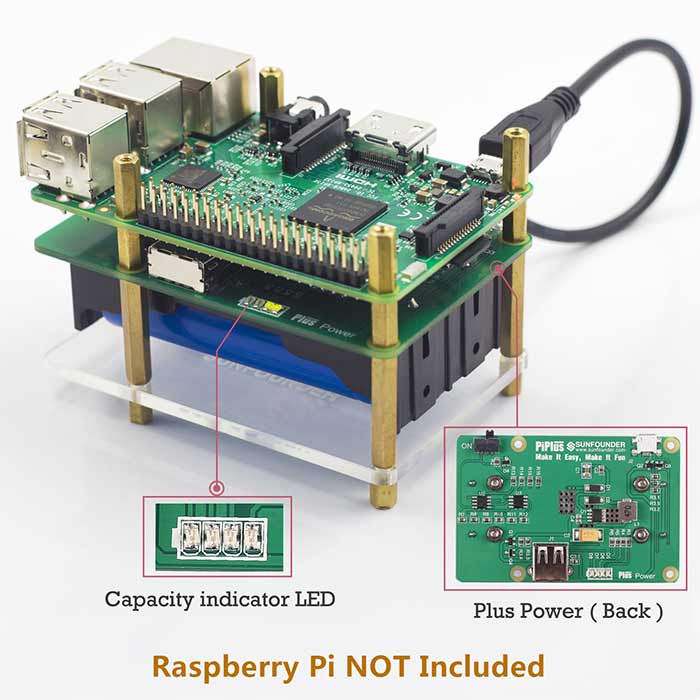

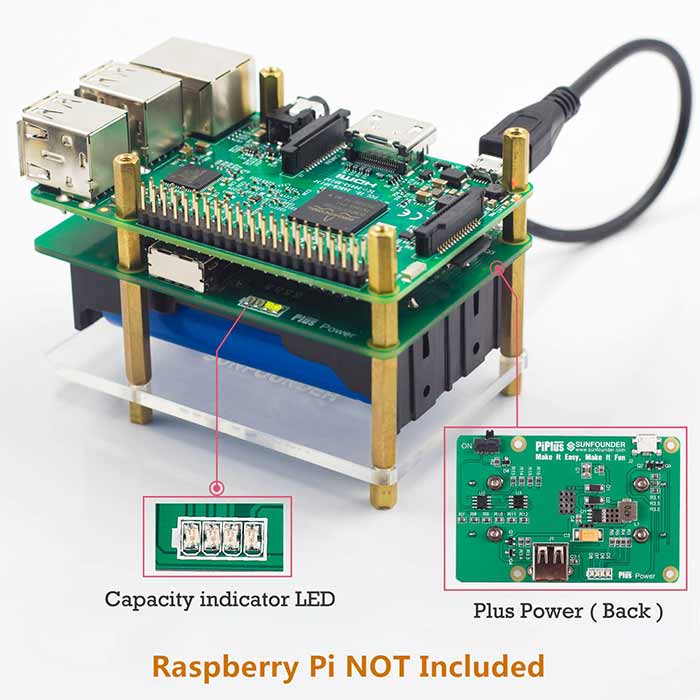

  • On the shield, there lies a 4-LED indicator showing the electric quantity of the batteries in 4 levels.
  • It contains a Micro USB port, with which you can seamlessly switch between the supply by the USB port and by the battery.
  • Input :Two 3.7V 18650 batteries; Output: 5V/2A

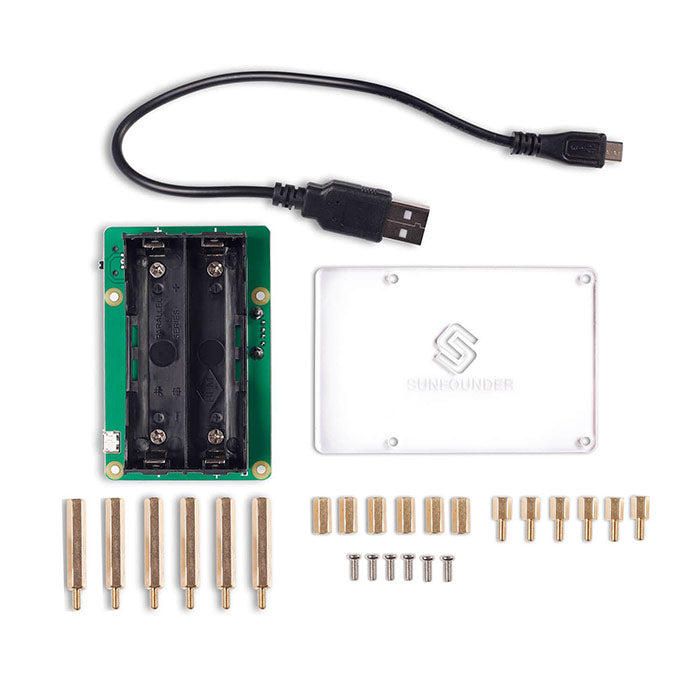

  • Plus Power Module x 1
  • Micro USB cable x 1
  • Acrylic Lid x 1
  • M2.5*25 single-head copper standoff x 6
  • M2.5*6 single-head copper standoff x 6
  • M2.5*10 copper standoff x 6
  • M2.5*6 screw x 6
  • 3.7V 18650 Li-ion batteries x 2
