SunFounder SG90 Micro Digital 9G Servo Motor for Helicopter Airplane Boat Robot Controls, 5 Pcs Pack

SunFounderSKU: 97800064
filler

Price:
$23.99
Stock:
In stock

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

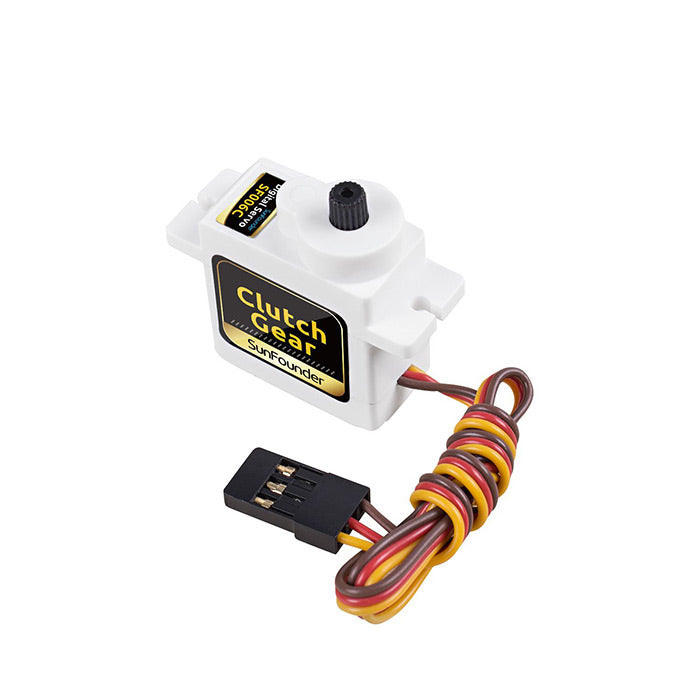

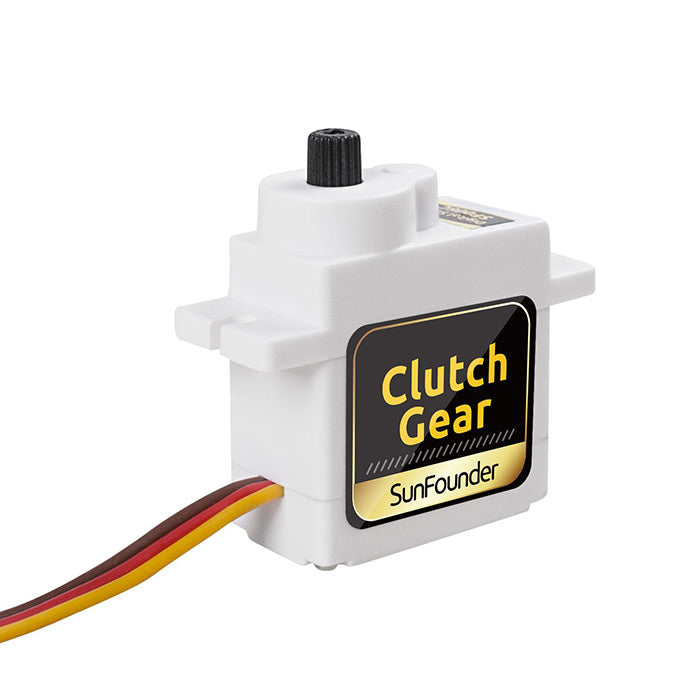

The maximum torque of the clutch gear digital servo is up to 1.6KG. It rotates from 0-180 degrees. The mechanical limit angle is 360 degrees. You can control its angle by a potentiometer. The connection cable is 25cm long, the orange wire is the signal wire, brown, the ground, and red, the power. The servo works under the voltage of 4.8~6.0V.

  • Solid and Unbreakable with Double Protection: Well protected by Torsion protection, Power failure protection after overload.
  • Better Performance: A clutch gear DC core motor built inside the digital servo motor

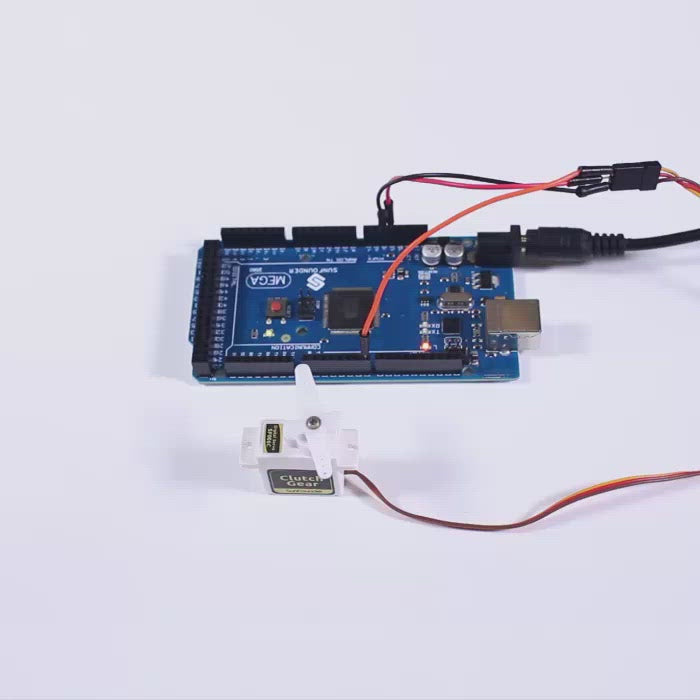

  • Widely Used: ALL kinds of R/C Toys, Arduino, and Raspberry Pi Projects.Remote control helicopters, microrobot, robot arm and boats
  • No Load Speed: 4.8V, ≦0.14sec/60°; 6V, ≦0.12sec/60°. Note: Torsion protection:≥0.9 kgf·cm; Power failure protection after 5 seconds of continuous
  • Stall Torque: 1.4 kg/cm(4.8V), 1.6kg/cm(6V)
  • Motor Type: Core motor
  • Operating Voltage: 4.8~6V DC
  • Standby Current: ≤4 mA
  • Consumption Current (at 4.8V No Load): ≦50mA
  • Consumption Current (at 6 V no load): ≦60mA
  • Stall Current(at locked 4.8V): ≦550mA
  • Stall Current(at locked 6V): ≦650mA
  • Rated Torque: 4.8V, ≥0.6 kgf·cm; 6V, ≥0.7 kgf·cm
  • Max. Torque: 4.8V, ≥1.4 kgf.cm; 6V, ≥1.6 kgf.cm
  • No Load Speed: 4.8V, ≦0.14sec/60°; 6V, ≦0.12sec/60°
  • Note: Torsion protection:≥0.9 kgf.cm;Power failure protection after 5 seconds of continuous
  • Operating Temperature Range: -10℃~+50℃
  • Storage Temperature Range: -20℃~+60℃
  • Operating Humidity Range: ≤ 90%RH
  • Storage Humidity Range: ≤ 90%RH
  • Weight: 10± 0.5g
  • Material: ABS
  • Operating Angle: 180°±10°(500~2500us)
  • Mechanical Limit Angle: 360°
  • Left & Right Travelling Angle: ≤ 6°
  • Centering deviation: ≤ 1°
  • Back Lash: ≤ 4 us
  • Amplifier Type: Digital
  • Cable Material: Ф1.08,19 PVC
  • Cable Length: 245±5mm(Exsert without plugs)
  • Connector Type: JR2.54mm/3Pin

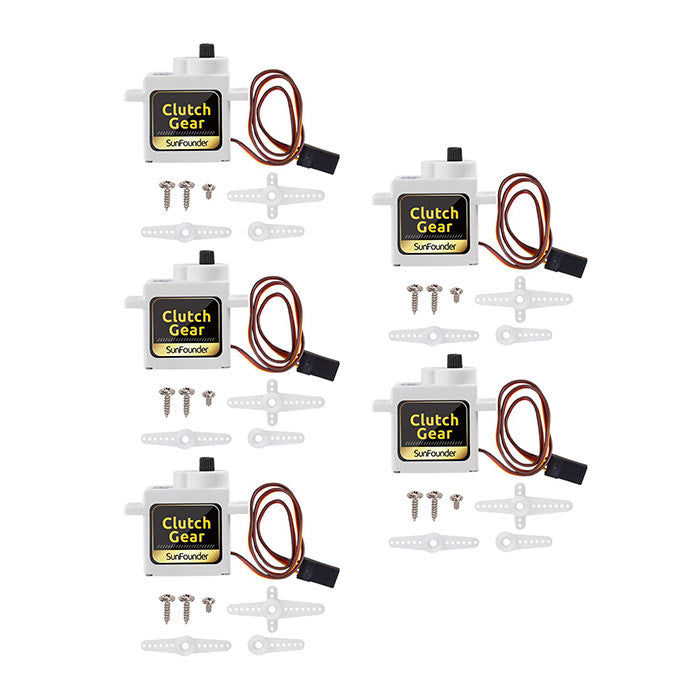

  • Mini SF006C Micro Servo Motor x 5
  • M2*8 Self-tapping screw
  • M1.7*3 screw
