Touch Switch Sensor Module for Arduino and Raspberry Pi

SunFounderSKU: TS0206D
filler

Price:
$7.99
Stock:
In stock

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

A metal touch sensor is a type of switch that only operates when it's touched by a charged body. It has a high-frequency transistor which conducts when receiving electromagnetic signals.

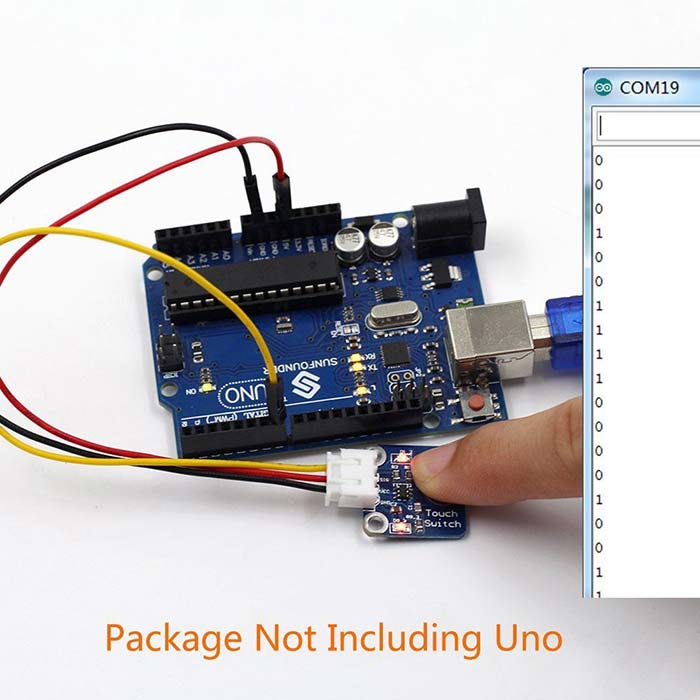

When it is electrified, at the beginning its original state is low and the LED is on. Touch the module, and then it outputs high and the LED goes out. Touch it again, and it'll output low with LED on, and so forth. To sum up, the output level changes between high and low with each touch.

Application:
The module can be applied to many daily electronic devices such as touch table light, touch power switch, etc.

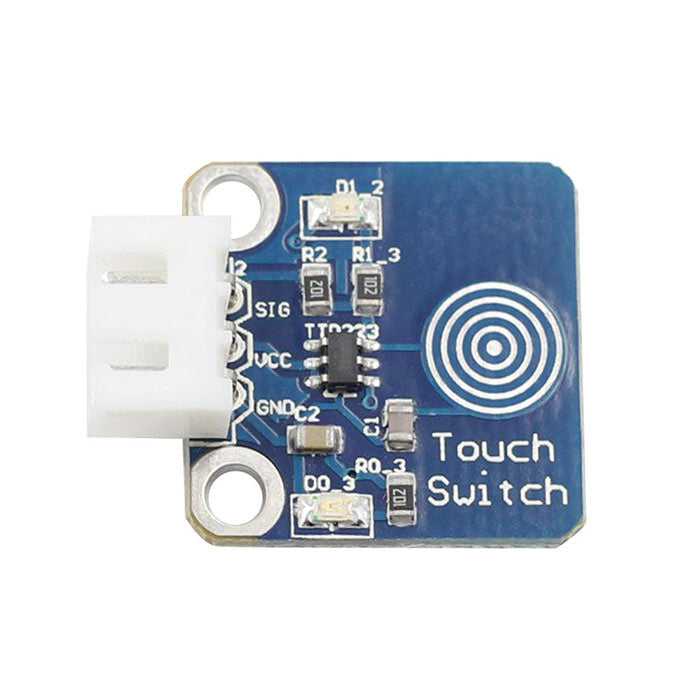

  • A low-power touch switch module of jog type.
  • Keep the current on/off state and only change it till the next touch.
  • Working voltage: 3.3 - 5V.
  • With power light and signal output indicator.
  • PCB size: 2.0 x 2.0 cm.
  • Touch Switch Module x 1
  • 3-Pin anti-reverse cable x 1
