7'' 1024×600 HDMI IPS LCD Capacitive Touchscreen for Raspberry Pi/Windows

SunFounderSKU: CN0199

In stock

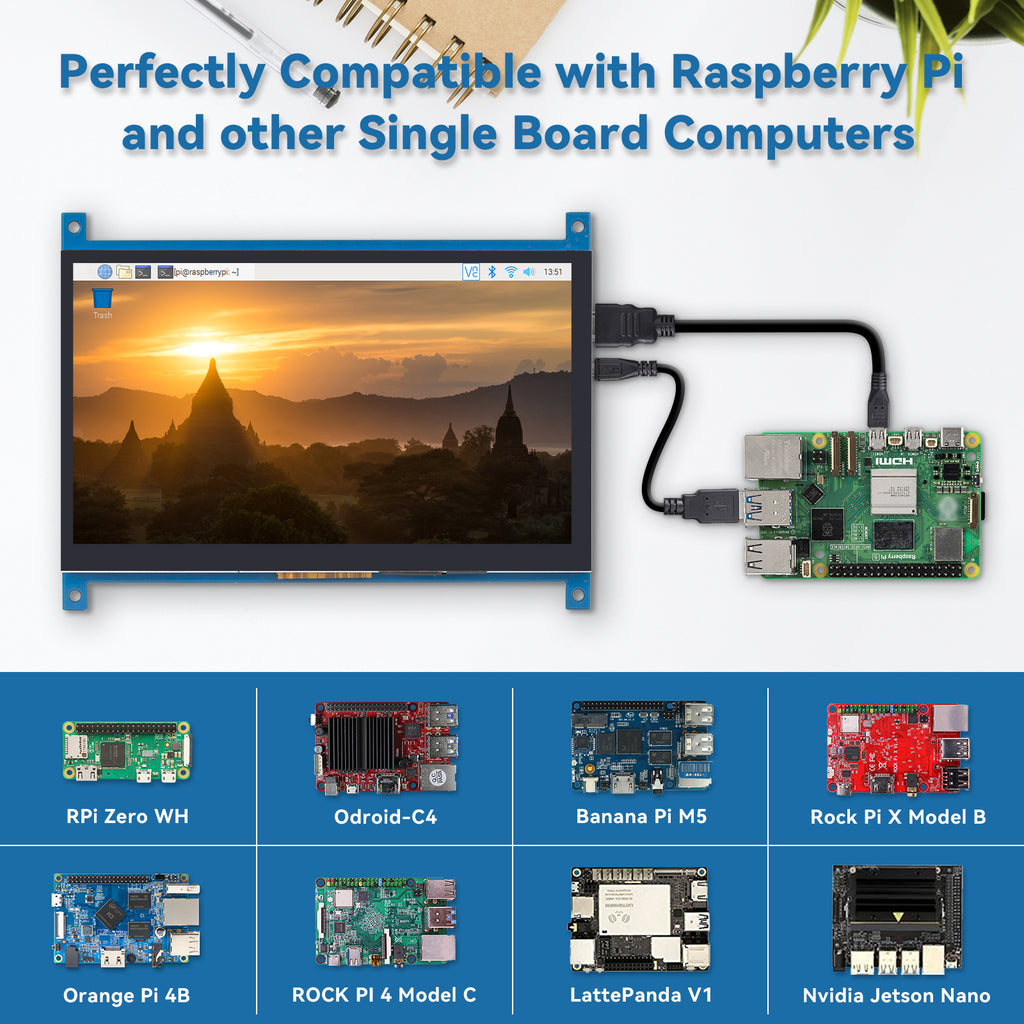

SunFounder 7'' Raspberry Pi HDMI touch screen with a new upgrade version to support Raspberry Pi 4 Model B, 3 Model B+/B, 2 Model B, 1 Model B+. It's a very portable touchscreen monitor with a lightweight high resolution with 1024x600 pixel, adapted IPS LCD screen to achieve wide viewing angle HD picture effect.

Free Shipping

Payment & Security

American Express Diners Club Discover JCB Maestro Mastercard PayPal Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

SunFounder 7'' Raspberry Pi HDMI touch screen with a new upgrade version to support Raspberry Pi 4 Model B, 3 Model B+/B, 2 Model B, 1 Model B+. It's a very portable touchscreen monitor with a lightweight high resolution with 1024 x 600 pixel, adapted IPS LCD screen to achieve wide viewing angle HD picture effect. In addition, this raspberry pi touch display touch area nearly reaches the screen boundary, much better than 85% the same screen in the market.

Learning Electronics and Programming for Raspberry Pi Beginners & Software Engineers. It provides you a better reading experience, and SunFounder team has been continuing to improve the tutorials. Now we released an Online Tutorial. Unlike the traditional paper documents or PDF manual, online tutorials will bring a more friendly UI design with good user experience. Most of the operations can be finished in the online documents. Such as programming, you can open the programming software directly and copy the codes or download the code to your computer. You will get the timely update and abundant content from SunFounder in the online documents.
Detailed Menu and Learning More:https://docs.sunfounder.com/projects/ts-7/en/latest/index.html

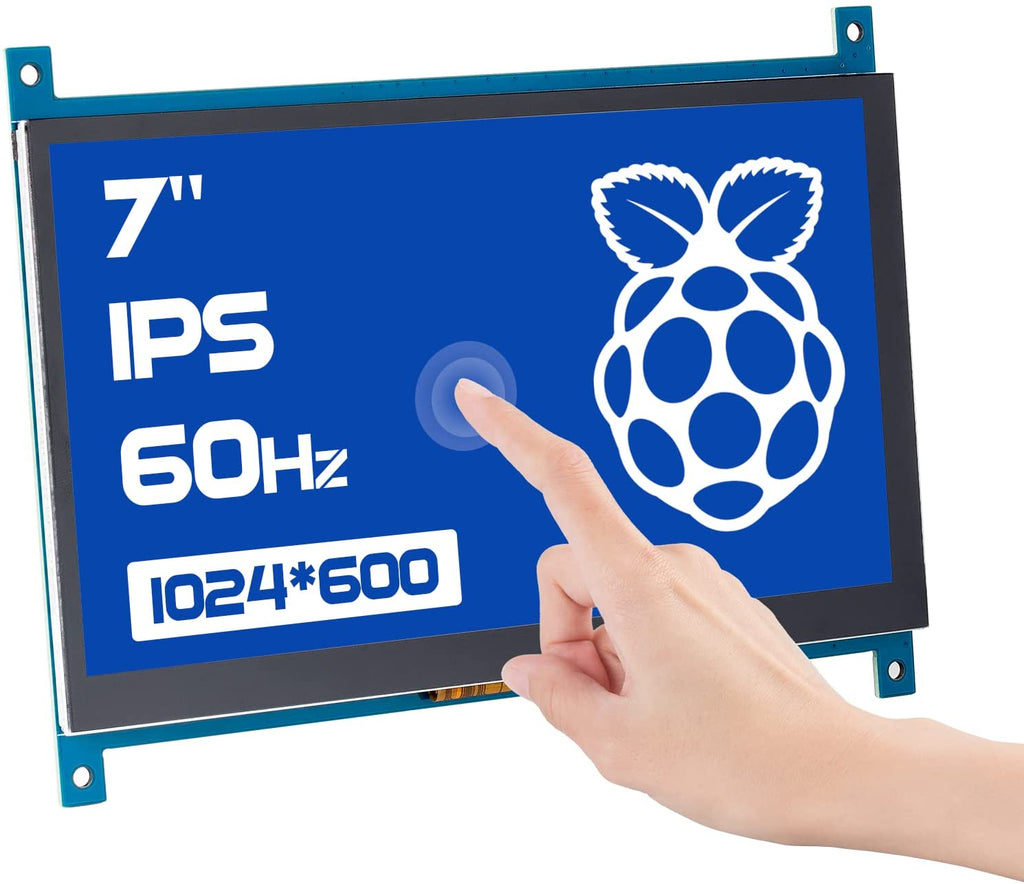

  • HD VISUAL ENJOYMENT: SunFounder RPi touchscreen with HD 1024 x 600 resolution, 16.7M (8bit) color numbers give high color restore the display. Rectangular ratio 16:9 display format conversion. IPS 170° full wide viewing angle gives you a crystal-clear viewing experience of all your content.

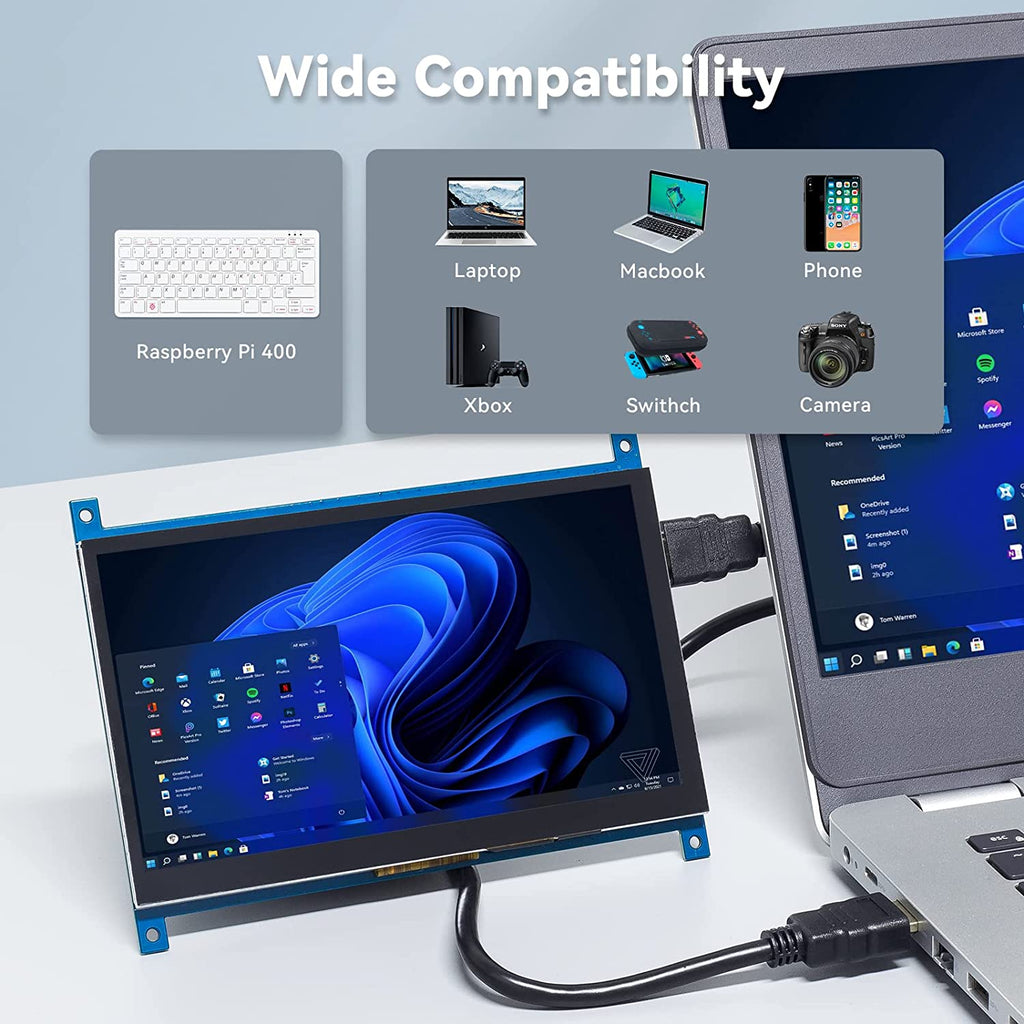

  • MULTIPLE APPLICATION: Supports Raspbian/Win7/Win8/Win10(Plug and play), Android/Linux (need to be configured first). And you can download Installation Manual for Raspberry Pi from the selling page. ( Note: the HDMI-Micro HDMI cable especially for Raspberry Pi 4, HDMI-HDMI cable for Raspberry Pi 3)
  • LOW COMSUMPTION: Low power consumption and have a good effect connect with a Windows computer, no trouble with installing drivers for various systems.

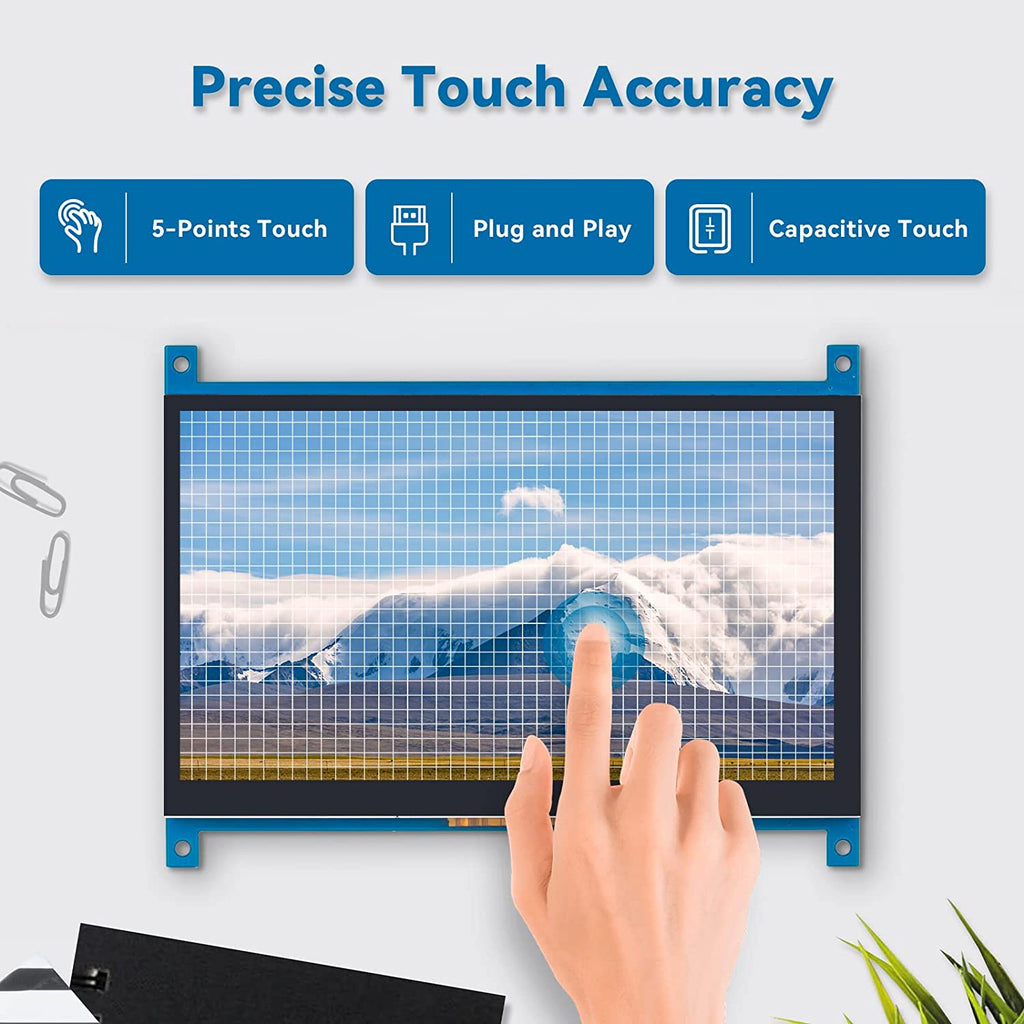

  • WIDE TOUCH AREA: The module size with 165.30(W)*121(H)*7.75(T), and the Active area is 154.21(mm)*85.92(mm). Most of the screens on the market will have this touch problem if the software is not adjusted, but this small HDMI screen no worries to reach the side of the screen.

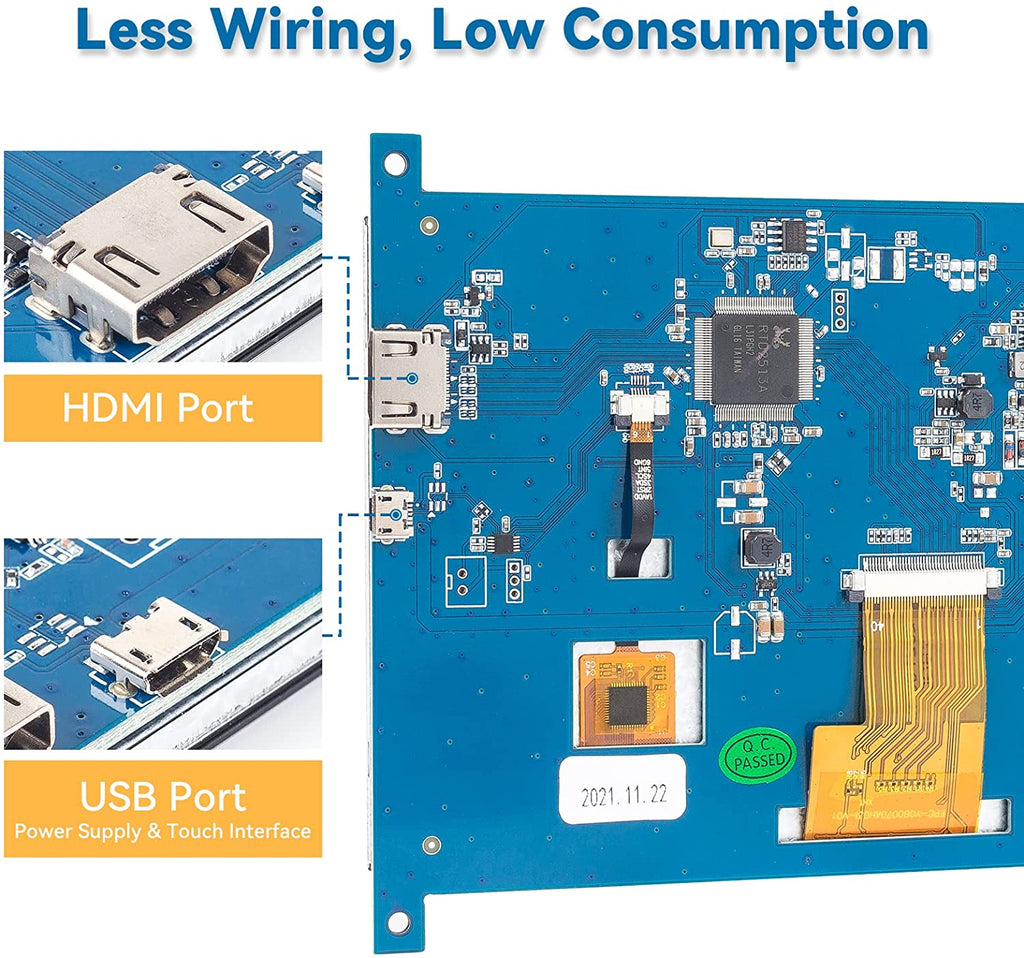

  • PLUG & PLAY: Equip with Micro USB and HDMI port support. Connect the screen to a device via the HDMI interface and power it via USB. To achieve the touch function powered by USB, do not require power cord and drive-free.


  • Screen Size: 7 inches
  • Item Dimensions: 165.30(W)*121(H)*7.75(T)
  • Viewing angle: 170°
  • Brightness: 250cd/m2
  • Aspect Ratio: 16:9
  • Display mode: Touchpad
  • Interface type: USB,HDMI
  • Backlight: White LED
  • Operating Temperature: -10°C~60°C
  • Storage Temperature: -20°C~70°C
  • Interface: Digital
  • Display Resolution Maximum: 1024 × 600
  • Display Type: IPS LCD
  • Color Numbers: 16.7M
  • Input Signal: HDMI
  • Power: USB(5.0V)
  • Consumption: 480(Typ.) mA
  • Operating Voltage: 5V
  • Rated Power: 480mA

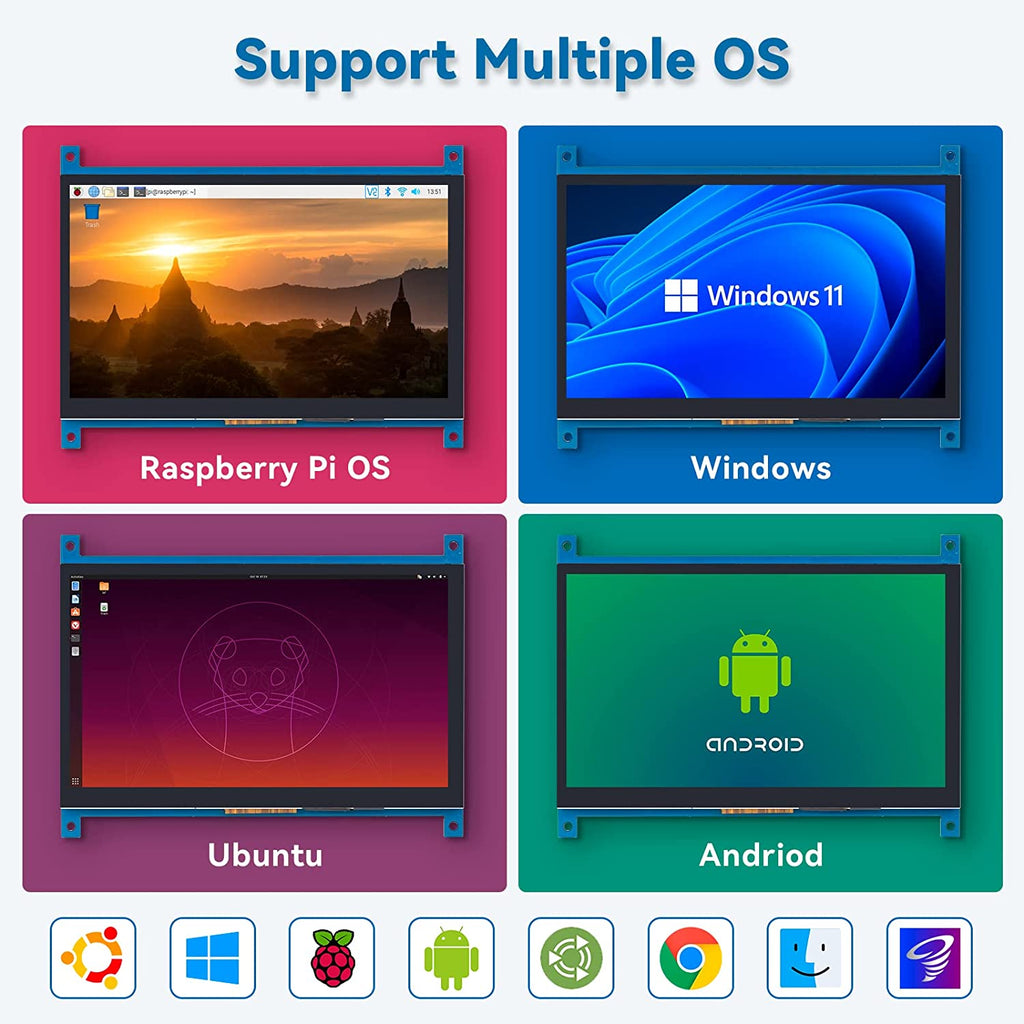

  • System: Raspbian/Win7/Win8/Win10(Plug and play), Android/Linux (need to be configured first)

Package List

  • 7 Inch IPS Touch Screen x 1
  • Micro USB Cable x 1
  • HDMI-HDMI Cable x 1
  • HDMI-Micro HDMI Cable x 1
  • M3 Nuts x 4
  • M3*8 Copper screws x 4
